Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A

Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A
Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A

Asymmetric Helix Angle,Anti Vibration Carbide Boring & Milling -4Flute-A

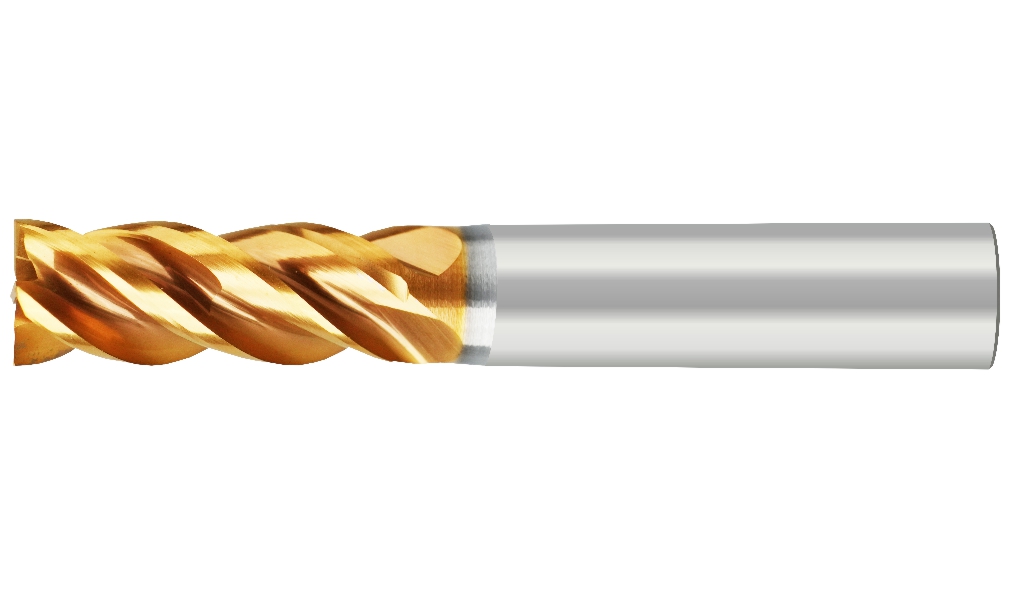

Carbide End Mill
◆ Asymmetric Helix Angle 40°/41°
◆ Anti Vibration

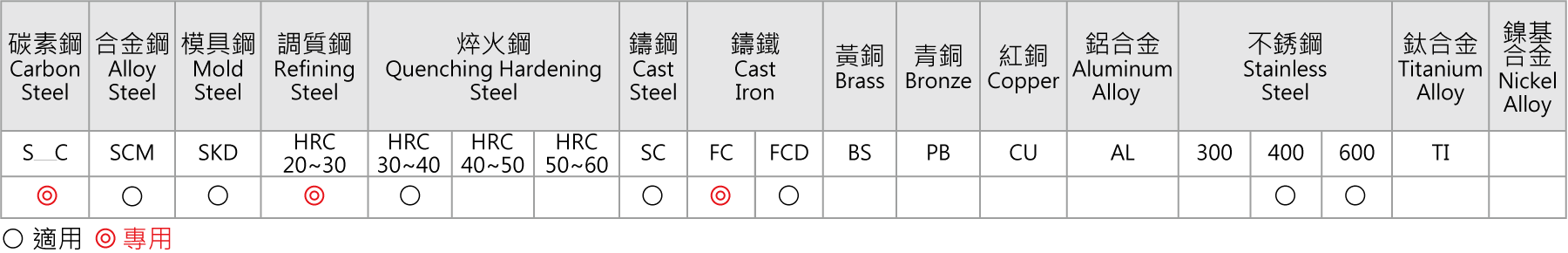

◆ Suitable for cutting S__C.SCM.HRC20~30.SC.FC.FCD.SUS
  • 銑刀刃數4刃
  • 螺旋角40/41
  • 柄徑公差h6
  • 刃徑公差025
  • 塗層DA
Share :
Tool material specifications
Features:

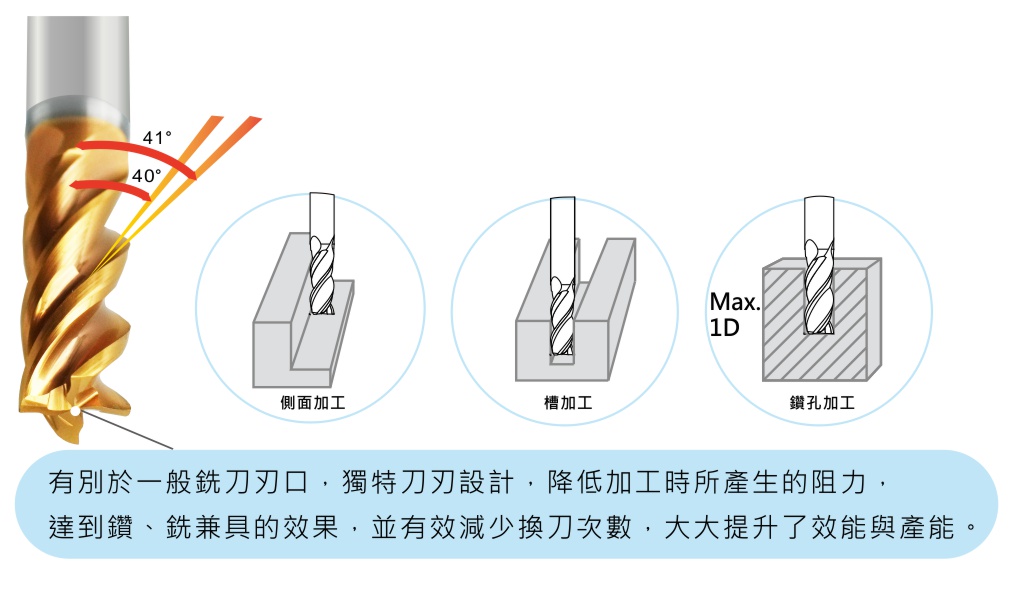

◆ The strong unequal spiral 40°/41° design, combined with special blade grinding, is not easy to vibrate the tool during processing, making its surface roughness excellent, effectively reducing vibration during cutting and increasing tool stability.
◆ Suitable for high-speed processing, heavy cutting and other processing methods, improving cutting quality and processing speed, is the only choice for finishing processing.
◆ Through the excellent characteristics of different coatings, the tool life and wear resistance are increased.
Filters
d
Diameter
  • 4
  • 6
  • 8
  • 10
  • 12
  • 16
ℓ
Flute Length
  • 6
  • 9
  • 10
  • 12
  • 15
  • 18
  • 20
  • 24
  • 25
  • 30
  • 40
L
Overall Length
  • 42
  • 50
  • 55
  • 60
  • 75
  • 100
  • 120
  • 150
D
Shank Diameter
  • 4
  • 6
  • 8
  • 10
  • 12
  • 16
AD4004
Unit : mm

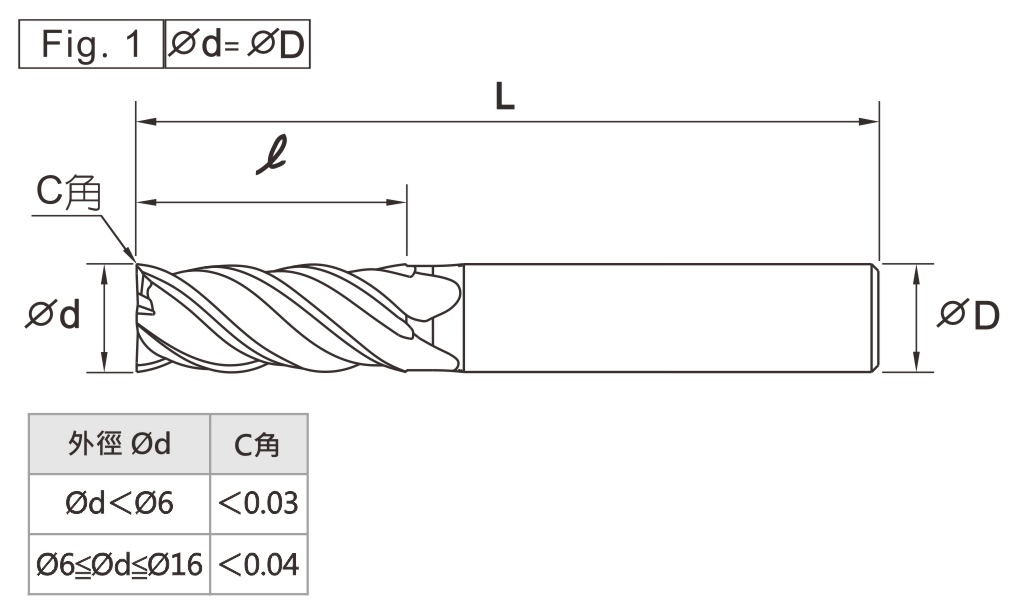

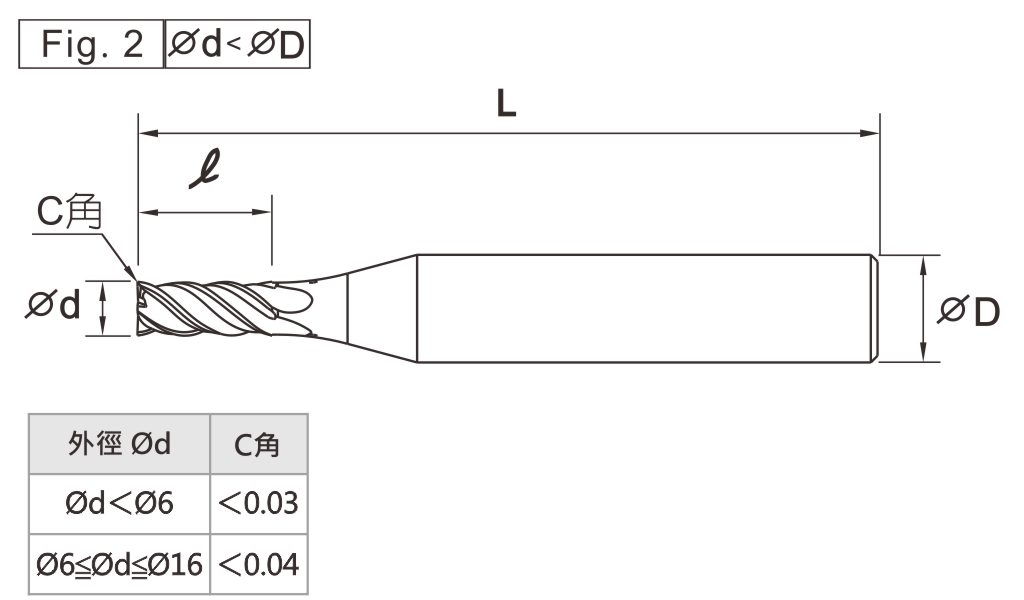

Model NO. dDiameter IFlute Length LOverall Length DShank Diameter State
AD4004AB04A46424●
AD4004AC04A46426●
AD4004AC06A69426●
AD4004AD08A812558●
AD4004AE10A10156010●
AD4004AF12A12186012●
AD4004AI16A16247516●
AD4004AB04L46604●
AD4004AC04L46606●
AD4004AC06L69606●
AD4004AD08L8121008●
AD4004AE10L101510010●
AD4004AF12L121812012●
AD4004AI16L162415016●
AD4004BB04A410504●
AD4004BC04A410506●
AD4004BC06A615506●
AD4004BD08A820608●
AD4004BE10A10257510●
AD4004BF12A12307512●
AD4004BI16A164010016●
AD4004BB04L410604●
AD4004BC04L410606●
AD4004BC06L615606●
AD4004BD08L8201008●
AD4004BE10L102512010●
AD4004BF12L123012012●
AD4004BI16L164015016●
: Production to order : In stock▲ : Customized products
