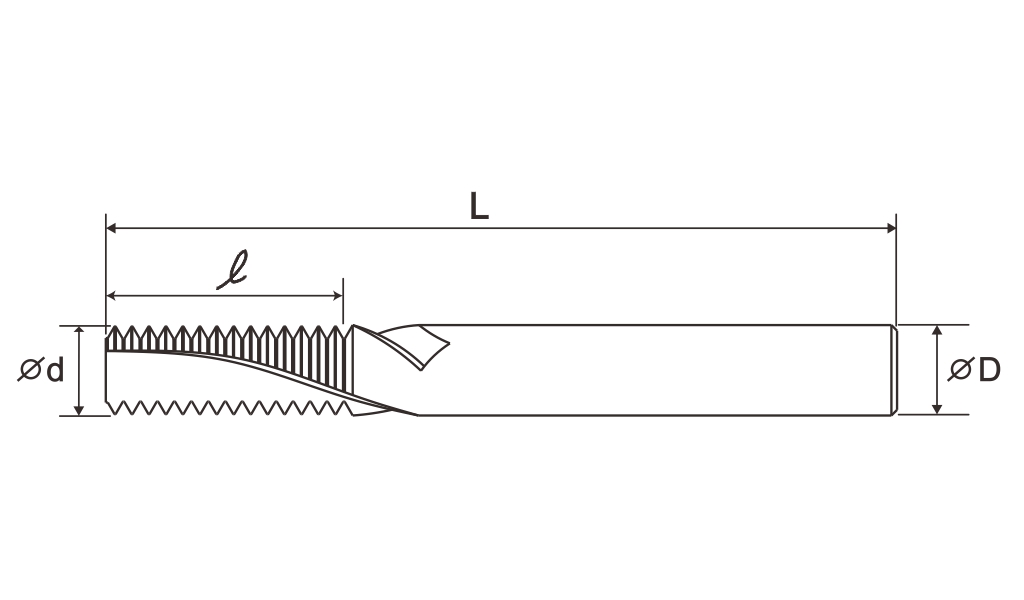

| Model NO. | Coarse Teeth | Fine Teeth | Ultra-fine Teeth | Tooth Pitch | dDiameter | ℓFlute Length | LOverall Length | DShank Diameter | Flute | Teeth | State |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CTSUB037013A-UN | No.10 | No12~3/8" | 32 | 3.7 | 10.4 | 60 | 4 | 3 | 13 | ● | |
| CTSUB043015A-UN | No12~3/8" | 32 | 4.3 | 12 | 60 | 6 | 3 | 15 | ● | ||
| CTSUB042013A-UN | No.12 1/4" | 7/16" 1/2" | 28 | 4.2 | 11.8 | 60 | 6 | 3 | 13 | ● | |
| CTSUB051015A-UN | 1/4" | 7/16" 1/2" | 28 | 5.1 | 13.7 | 60 | 6 | 3 | 15 | ● | |
| CTSUB098025A-UN | 7/16" 1/2" | 28 | 9.8 | 22.7 | 75 | 10 | 3 | 25 | ● | ||
| CTSUB035010A-UN | No.10 | 5/16" 3/8" | 9/16"~11/16" | 24 | 3.5 | 10.6 | 60 | 4 | 3 | 10 | ● |
| CTSUB041011A-UN | No.12 | 5/16" 3/8" | 9/16"~11/16" | 24 | 4.1 | 11.7 | 60 | 6 | 3 | 11 | ● |
| CTSUB065016A-UN | 5/16" 3/8" | 9/16"~11/16" | 24 | 6.5 | 17 | 65 | 8 | 3 | 16 | ● | |
| CTSUB081019A-UN | 3/8" | 9/16"~11/16" | 24 | 8.1 | 20.1 | 75 | 10 | 3 | 19 | ● | |
| CTSUB128028A-UN | 9/16"~11/16" | 24 | 12.8 | 29.7 | 100 | 14 | 4 | 28 | ● | ||
| CTSUB048011A-UN | 1/4" | 7/16" 1/2" | 3/4"~1" | 20 | 4.8 | 14 | 60 | 6 | 3 | 11 | ● |
| CTSUB095018A-UN | 7/16" 1/2" | 3/4"~1" | 20 | 9.5 | 22.9 | 75 | 10 | 3 | 18 | ● | |
| CTSUB110021A-UN | 1/2" | 3/4"~1" | 20 | 11 | 26.7 | 85 | 12 | 4 | 21 | ● | |
| CTSUB173031A-UN | 3/4"~1" | 20 | 17.3 | 39.4 | 105 | 18 | 4 | 31 | ● | ||
| CTSUB061012A-UN | 5/16" | 9/16" 5/8" | 11/16"~1 11/16" | 18 | 6.1 | 17 | 65 | 8 | 3 | 12 | ● |
| CTSUB124021A-UN | 9/16" 5/8" | 11/16"~1 11/16" | 18 | 12.4 | 29.7 | 100 | 14 | 4 | 21 | ● | |
| CTSUB139023-UN | 5/8" | 11/16"~1 11/16" | 18 | 13.9 | 32.5 | 100 | 14 | 4 | 23 | ● | |
| CTSUB076013A-UN | 3/8" | 3/4" | 16 | 7.6 | 20.7 | 75 | 8 | 3 | 13 | ● | |
| CTSUB169025A-UN | 3/4" | 16 | 16.9 | 39.7 | 105 | 18 | 4 | 25 | ● | ||
| CTSUB089013A-UN | 7/16" | 7/8" | 14 | 8.9 | 23.6 | 75 | 10 | 3 | 13 | ● | |
| CTSUB198025A-UN | 7/8" | 14 | 19.8 | 45.4 | 110 | 20 | 4 | 25 | ● | ||
| CTSUB103014A-UN | 1/2" | 13 | 10.3 | 27.4 | 85 | 12 | 4 | 14 | ● | ||
| CTSUB117014A-UN | 9/16" | 1"~1 1/2" | 12 | 11.7 | 29.7 | 85 | 12 | 4 | 14 | ● | |
| CTSUB198025A-UN | 1"~1 1/2" | 12 | 19.8 | 53 | 120 | 20 | 4 | 25 | ● | ||
| CTSUB130015A-UN | 5/8" | 11 | 13 | 34.7 | 100 | 14 | 4 | 15 | ● | ||
| CTSUB158016A-UN | 3/4" | 10 | 15.8 | 40.7 | 100 | 16 | 4 | 16 | ● | ||
| CTSUB189017A-UN | 7/8" | 9 | 18.9 | 48 | 115 | 20 | 4 | 17 | ● | ||
| CTSUB198017A-UN | 1" | 8 | 19.8 | 54 | 120 | 20 | 4 | 17 | ● |
