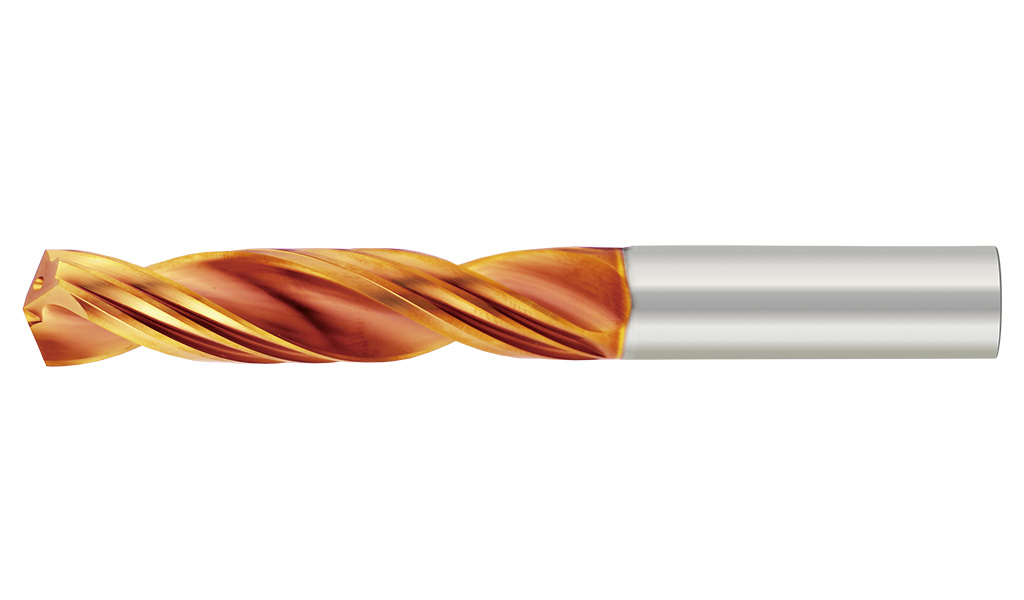

加強型鎢鋼油孔鑽鉸刀X3D

加強型鎢鋼油孔鑽鉸刀X3D

加強型鎢鋼油孔鑽鉸刀X3D

加強型鎢鋼油孔鑽鉸刀X3D

加強型鎢鋼油孔鑽鉸刀X3D

加強型鎢鋼油孔鑽鉸刀X3D

鎢鋼鑽頭

◆3倍長。
◆加強型。
◆中心出水設計使鑽尖冷卻更有效率及排屑效率加。
◆適用於切削鋼鐵材料、鑄鐵、不銹鋼、鈦合金、鎳基合金。

此目錄下載

切削條件表下載

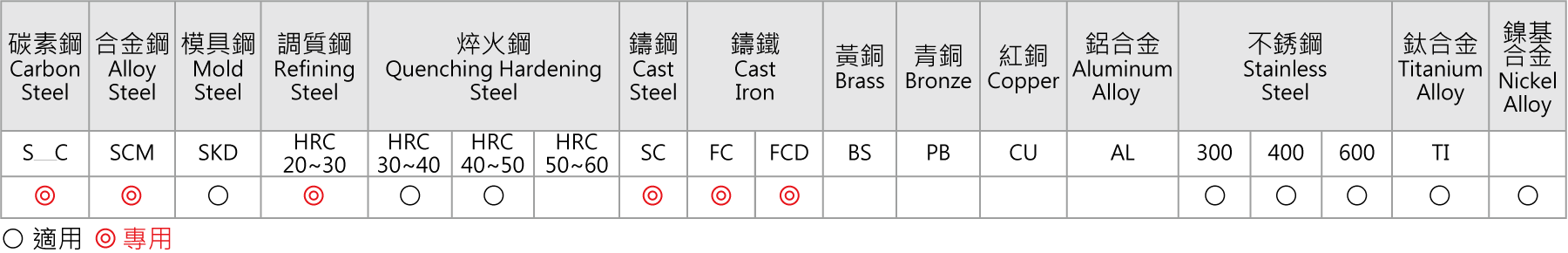

刀具使用材質規範

特性 :
增加副刃，有效延長刀具使用壽命，搭配中心出水的方式，使排屑效率及冷卻效果極佳。

篩選器

重置

d

刃徑

ℓ

溝長

17
19
22
25
28
30
32
35
37
39
42
45
47
49
52
54
56
58
60
63
65
68
70
73
75
78
80

L

全長

50
55
60
65
75
85
90
95
100
105
110
115
125
130
135

D

柄徑

4
6
8
10
12
13
14
16

DRH3D2A

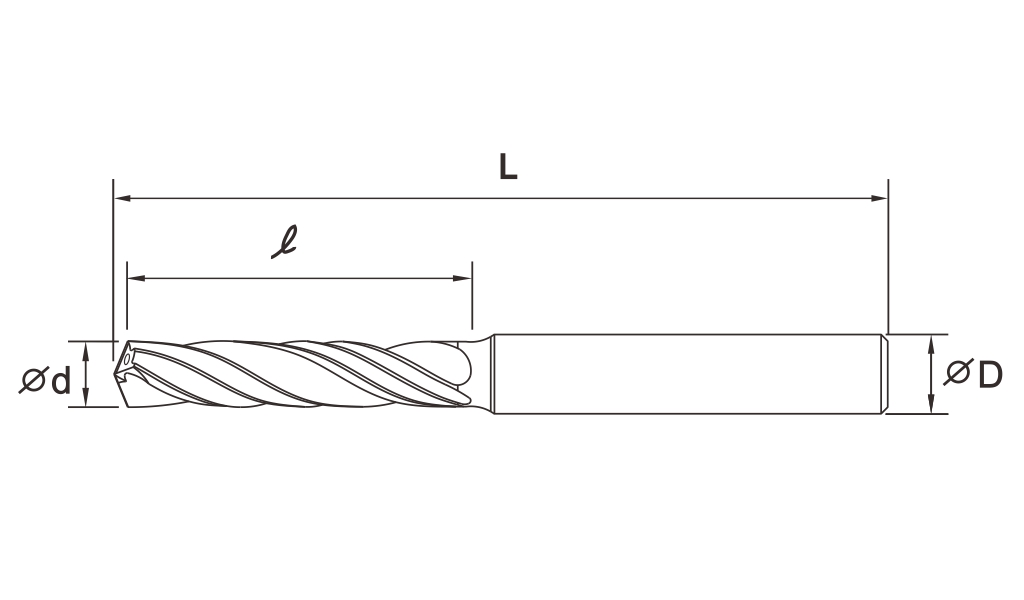

單位 : mm (Unit:mm)

刀具 Model NO.	刃徑 d Diameter	溝長 ℓ Grooving Length	全長 L Overall Length	柄徑 D Shank Diameter	在庫
DRH3D2A0030A	3	17	50	4	○
DRH3D2A0310A	3.1	19	55	6	○
DRH3D2A0320A	3.2	19	55	6	○
DRH3D2A0330A	3.3	19	55	6	●
DRH3D2A0335A	3.35	19	55	6	●
DRH3D2A0340A	3.4	19	55	6	●
DRH3D2A0350A	3.5	19	55	6	○
DRH3D2A0360A	3.6	22	60	6	○
DRH3D2A0370A	3.7	22	60	6	○
DRH3D2A0380A	3.8	22	60	6	○
DRH3D2A0390A	3.9	22	60	6	○
DRH3D2A0040A	4	22	60	6	○
DRH3D2A0410A	4.1	25	65	6	○
DRH3D2A0420A	4.2	25	65	6	●
DRH3D2A0425A	4.25	25	65	6	●
DRH3D2A0430A	4.3	25	65	6	●
DRH3D2A0440A	4.4	25	65	6	○
DRH3D2A0450A	4.5	25	65	6	○
DRH3D2A0460A	4.6	28	65	6	○
DRH3D2A0470A	4.7	28	65	6	○
DRH3D2A0480A	4.8	28	65	6	○
DRH3D2A0490A	4.9	28	65	6	○
DRH3D2A0050A	5	28	65	6	●
DRH3D2A0505A	5.05	30	75	6	●
DRH3D2A0510A	5.1	30	75	6	●
DRH3D2A0520A	5.2	30	75	6	○
DRH3D2A0530A	5.3	30	75	6	○
DRH3D2A0540A	5.4	30	75	6	○
DRH3D2A0550A	5.5	30	75	6	○
DRH3D2A0560A	5.6	32	75	6	○
DRH3D2A0570A	5.7	32	75	6	○
DRH3D2A0580A	5.8	32	75	6	○
DRH3D2A0590A	5.9	32	75	6	○
DRH3D2A0060A	6	32	75	6	○
DRH3D2A0610A	6.1	35	85	8	○
DRH3D2A0620A	6.2	35	85	8	○
DRH3D2A0630A	6.3	35	85	8	○
DRH3D2A0640A	6.4	35	85	8	○
DRH3D2A0650A	6.5	35	85	8	○
DRH3D2A0660A	6.6	37	85	8	○
DRH3D2A0670A	6.7	37	85	8	○
DRH3D2A0675A	6.75	37	85	8	●
DRH3D2A0680A	6.8	37	85	8	●
DRH3D2A0685A	6.85	37	85	8	●
DRH3D2A0690A	6.9	37	85	8	○
DRH3D2A0070A	7	37	85	8	○
DRH3D2A0710A	7.1	39	90	8	○
DRH3D2A0720A	7.2	39	90	8	○
DRH3D2A0730A	7.3	39	90	8	○
DRH3D2A0740A	7.4	39	90	8	○
DRH3D2A0750A	7.5	39	90	8	○
DRH3D2A0760A	7.6	42	90	8	○
DRH3D2A0770A	7.7	42	90	8	○
DRH3D2A0780A	7.8	42	90	8	○
DRH3D2A0790A	7.9	42	90	8	○
DRH3D2A0080A	8	42	90	8	○
DRH3D2A0810A	8.1	45	95	10	○
DRH3D2A0820A	8.2	45	95	10	○
DRH3D2A0830A	8.3	45	95	10	○
DRH3D2A0840A	8.4	45	95	10	○
DRH3D2A0850A	8.5	45	95	10	●
DRH3D2A0855A	8.55	45	95	10	●
DRH3D2A0860A	8.6	47	95	10	●
DRH3D2A0870A	8.7	47	95	10	○
DRH3D2A0880A	8.8	47	95	10	○
DRH3D2A0890A	8.9	47	95	10	○
DRH3D2A0090A	9	47	95	10	○
DRH3D2A0910A	9.1	49	100	10	○
DRH3D2A0920A	9.2	49	100	10	○
DRH3D2A0930A	9.3	49	100	10	○
DRH3D2A0940A	9.4	49	100	10	○
DRH3D2A0950A	9.5	49	100	10	○
DRH3D2A0960A	9.6	52	100	10	○
DRH3D2A0970A	9.7	52	100	10	○
DRH3D2A0980A	9.8	52	100	10	○
DRH3D2A0990A	9.9	52	100	10	○
DRH3D2A0100A	10	52	100	10	○
DRH3D2A1010A	10.1	54	105	12	○
DRH3D2A1020A	10.2	54	105	12	○
DRH3D2A1025A	10.25	54	105	12	●
DRH3D2A1030A	10.3	54	105	12	●
DRH3D2A1035A	10.35	54	105	12	●
DRH3D2A1040A	10.4	54	105	12	●
DRH3D2A1050A	10.5	54	105	12	●
DRH3D2A1060A	10.6	56	105	12	○
DRH3D2A1070A	10.7	56	105	12	○
DRH3D2A1080A	10.8	56	105	12	○
DRH3D2A1090A	10.9	56	105	12	○
DRH3D2A1100A	11	56	105	12	○
DRH3D2A1110A	11.1	58	110	12	○
DRH3D2A1120A	11.2	58	110	12	○
DRH3D2A1130A	11.3	58	110	12	○
DRH3D2A1140A	11.4	58	110	12	○
DRH3D2A1150A	11.5	58	110	12	○
DRH3D2A1160A	11.6	60	110	12	○
DRH3D2A1170A	11.7	60	110	12	○
DRH3D2A1180A	11.8	60	110	12	○
DRH3D2A1190A	11.9	60	110	12	○
DRH3D2A1200A	12	60	110	12	○
DRH3D2A1210A	12.1	63	115	13	○
DRH3D2A1220A	12.2	63	115	13	○
DRH3D2A1230A	12.3	63	115	13	○
DRH3D2A1240A	12.4	63	115	13	○
DRH3D2A1250A	12.5	63	115	13	○
DRH3D2A1260A	12.6	65	115	13	○
DRH3D2A1270A	12.7	65	115	13	○
DRH3D2A1280A	12.8	65	115	13	○
DRH3D2A1290A	12.9	65	115	13	○
DRH3D2A1300A	13	65	115	13	○
DRH3D2A1310A	13.1	68	125	14	○
DRH3D2A1320A	13.2	68	125	14	○
DRH3D2A1330A	13.3	68	125	14	○
DRH3D2A1340A	13.4	68	125	14	○
DRH3D2A1350A	13.5	68	125	14	○
DRH3D2A1360A	13.6	70	125	14	○
DRH3D2A1370A	13.7	70	125	14	○
DRH3D2A1380A	13.8	70	125	14	○
DRH3D2A1390A	13.9	70	125	14	○
DRH3D2A1400A	14	70	125	14	○
DRH3D2A1410A	14.1	73	130	16	○
DRH3D2A1420A	14.2	73	130	16	○
DRH3D2A1430A	14.3	73	130	16	○
DRH3D2A1440A	14.4	73	130	16	○
DRH3D2A1450A	14.5	73	130	16	○
DRH3D2A1460A	14.6	75	130	16	○
DRH3D2A1470A	14.7	75	130	16	○
DRH3D2A1480A	14.8	75	130	16	○
DRH3D2A1490A	14.9	75	130	16	○
DRH3D2A1500A	15	75	130	16	○
DRH3D2A1510A	15.1	78	135	16	○
DRH3D2A1520A	15.2	78	135	16	○
DRH3D2A1530A	15.3	78	135	16	○
DRH3D2A1540A	15.4	78	135	16	○
DRH3D2A1550A	15.5	78	135	16	○
DRH3D2A1560A	15.6	80	135	16	○
DRH3D2A1570A	15.7	80	135	16	○
DRH3D2A1580A	15.8	80	135	16	○
DRH3D2A1590A	15.9	80	135	16	○
DRH3D2A1600A	16	80	135	16	○

: 接單生產品 : 在庫品▲ : 訂製品
