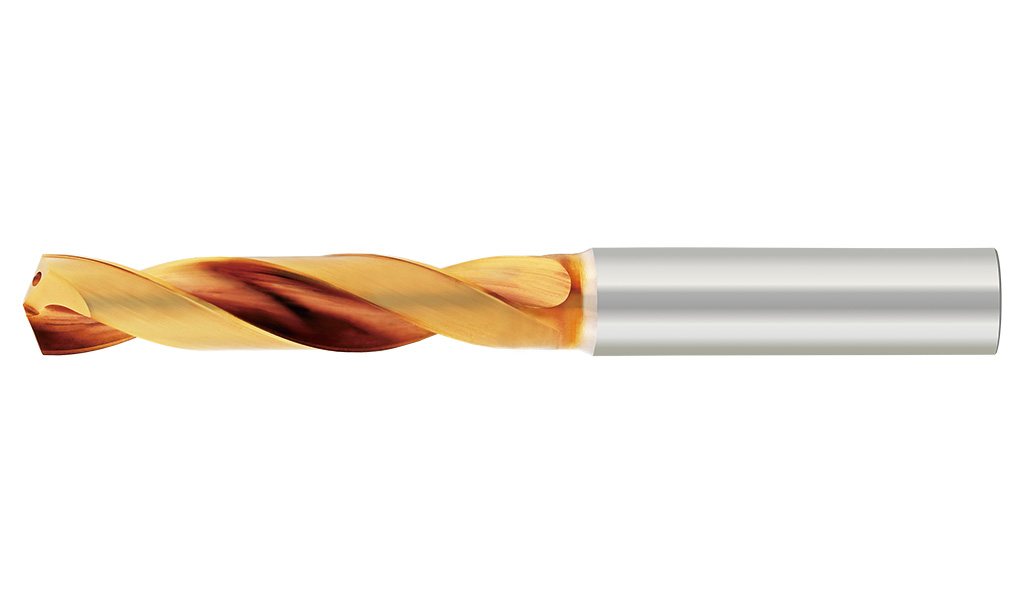

強力鎢鋼油孔鑽頭X3D

強力鎢鋼油孔鑽頭X3D

強力鎢鋼油孔鑽頭X3D

強力鎢鋼油孔鑽頭X3D

強力鎢鋼油孔鑽頭X3D

強力鎢鋼油孔鑽頭X3D

鎢鋼鑽頭

◆3倍長。
◆特殊刀刃形狀。
◆中心出水設計使鑽尖冷卻更有效率及排屑效率加。

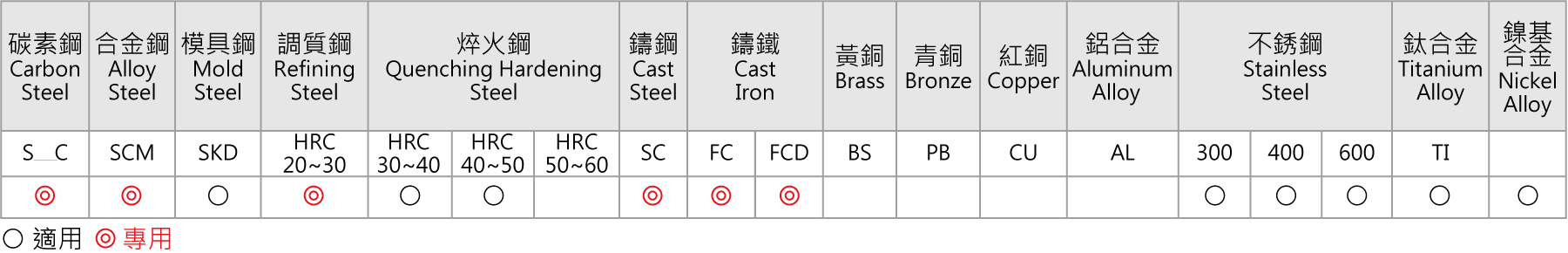

◆適用於切削鋼鐵材料、鑄鐵、不銹鋼、鈦合金、鎳基合金。

此目錄下載

切削條件表下載

刀具使用材質規範

特性 :
利用特殊刀刃設計，有效降低加工時所產生的阻力，大幅提升刀具穩定性，搭配中心出水的方式，讓鑽頭能夠擁有最好的冷卻效果與極佳的排屑效率。

篩選器

重置

d

刃徑

ℓ

溝長

17
19
22
25
28
30
32
35
37
39
42
45
47
49
52
54
56
58
60
63
65
68
70
73
75
78
80

L

全長

50
55
60
65
75
85
90
95
100
105
110
115
125
130
135

D

柄徑

4
6
8
10
12
13
14
16

DAH3D2A

單位 : mm (Unit:mm)

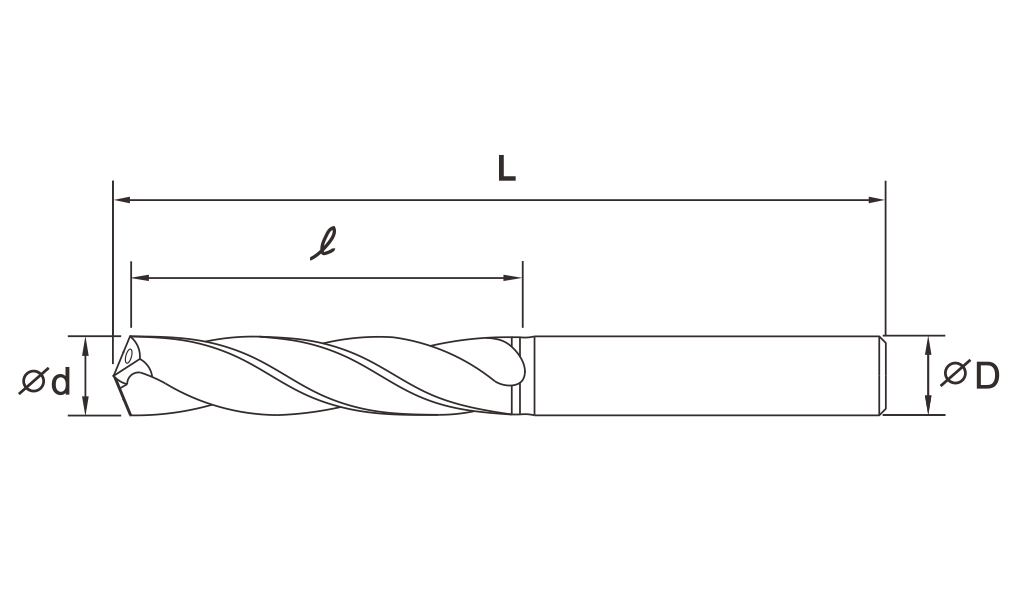

刀具 Model NO.	刃徑 d Diameter	溝長 ℓ Grooving Length	全長 L Overall Length	柄徑 D Shank Diameter	在庫
DAH3D2A0250A	2.5	17	50	4	●
DAH3D2A0255A	2.55	17	50	4	●
DAH3D2A0260A	2.6	17	50	4	●
DAH3D2A0265A	2.65	17	50	4	●
DAH3D2A0270A	2.7	17	50	4	●
DAH3D2A0275A	2.75	17	50	4	●
DAH3D2A0280A	2.8	17	50	4	●
DAH3D2A0285A	2.85	17	50	4	●
DAH3D2A0290A	2.9	17	50	4	●
DAH3D2A0295A	2.95	17	50	4	●
DAH3D2A0030A	3	17	50	4	●
DAH3D2A3054A	3.05	19	55	4	●
DAH3D2A3104A	3.1	19	55	4	●
DAH3D2A3154A	3.15	19	55	4	●
DAH3D2A3204A	3.2	19	55	4	●
DAH3D2A3254A	3.25	19	55	4	●
DAH3D2A3304A	3.3	19	55	4	●
DAH3D2A3354A	3.35	19	55	4	●
DAH3D2A3404A	3.4	19	55	4	●
DAH3D2A3454A	3.45	19	55	4	●
DAH3D2A3504A	3.5	19	55	4	●
DAH3D2A3554A	3.55	22	60	4	●
DAH3D2A3604A	3.6	22	60	4	●
DAH3D2A3654A	3.65	22	60	4	●
DAH3D2A3704A	3.7	22	60	4	●
DAH3D2A3754A	3.75	22	60	4	●
DAH3D2A3804A	3.8	22	60	4	●
DAH3D2A3854A	3.85	22	60	4	●
DAH3D2A3904A	3.9	22	60	4	●
DAH3D2A3954A	3.95	22	60	4	●
DAH3D2A4004A	4	22	60	4	●
DAH3D2A3006A	3	17	50	6	●
DAH3D2A0305A	3.05	19	55	6	●
DAH3D2A0310A	3.1	19	55	6	●
DAH3D2A0315A	3.15	19	55	6	●
DAH3D2A0320A	3.2	19	55	6	●
DAH3D2A0325A	3.25	19	55	6	●
DAH3D2A0330A	3.3	19	55	6	●
DAH3D2A0335A	3.35	19	55	6	●
DAH3D2A0340A	3.4	19	55	6	●
DAH3D2A0345A	3.45	19	55	6	●
DAH3D2A0350A	3.5	19	55	6	●
DAH3D2A0355A	3.55	22	60	6	●
DAH3D2A0360A	3.6	22	60	6	●
DAH3D2A0365A	3.65	22	60	6	●
DAH3D2A0370A	3.7	22	60	6	●
DAH3D2A0375A	3.75	22	60	6	●
DAH3D2A0380A	3.8	22	60	6	●
DAH3D2A0385A	3.85	22	60	6	●
DAH3D2A0390A	3.9	22	60	6	●
DAH3D2A0395A	3.95	22	60	6	●
DAH3D2A0040A	4	22	60	6	●
DAH3D2A0405A	4.05	25	65	6	●
DAH3D2A0410A	4.1	25	65	6	●
DAH3D2A0415A	4.15	25	65	6	●
DAH3D2A0420A	4.2	25	65	6	●
DAH3D2A0425A	4.25	25	65	6	●
DAH3D2A0430A	4.3	25	65	6	●
DAH3D2A0435A	4.35	25	65	6	●
DAH3D2A0440A	4.4	25	65	6	●
DAH3D2A0445A	4.45	25	65	6	●
DAH3D2A0450A	4.5	25	65	6	●
DAH3D2A0455A	4.55	28	65	6	●
DAH3D2A0460A	4.6	28	65	6	●
DAH3D2A0465A	4.65	28	65	6	●
DAH3D2A0470A	4.7	28	65	6	●
DAH3D2A0475A	4.75	28	65	6	●
DAH3D2A0480A	4.8	28	65	6	●
DAH3D2A0485A	4.85	28	65	6	●
DAH3D2A0490A	4.9	28	65	6	●
DAH3D2A0495A	4.95	28	65	6	●
DAH3D2A0050A	5	28	65	6	●
DAH3D2A0505A	5.05	30	75	6	●
DAH3D2A0510A	5.1	30	75	6	●
DAH3D2A0515A	5.15	30	75	6	●
DAH3D2A0520A	5.2	30	75	6	●
DAH3D2A0525A	5.25	30	75	6	●
DAH3D2A0530A	5.3	30	75	6	●
DAH3D2A0535A	5.35	30	75	6	●
DAH3D2A0540A	5.4	30	75	6	●
DAH3D2A0545A	5.45	30	75	6	●
DAH3D2A0550A	5.5	30	75	6	●
DAH3D2A0555A	5.55	32	75	6	●
DAH3D2A0560A	5.6	32	75	6	●
DAH3D2A0565A	5.65	32	75	6	●
DAH3D2A0570A	5.7	32	75	6	●
DAH3D2A0575A	5.75	32	75	6	●
DAH3D2A0580A	5.8	32	75	6	●
DAH3D2A0585A	5.85	32	75	6	●
DAH3D2A0590A	5.9	32	75	6	●
DAH3D2A0595A	5.95	32	75	6	●
DAH3D2A0060A	6	32	75	6	●
DAH3D2A0605A	6.05	35	85	8	●
DAH3D2A0610A	6.1	35	85	8	●
DAH3D2A0615A	6.15	35	85	8	●
DAH3D2A0620A	6.2	35	85	8	●
DAH3D2A0625A	6.25	35	85	8	●
DAH3D2A0630A	6.3	35	85	8	●
DAH3D2A0635A	6.35	35	85	8	●
DAH3D2A0640A	6.4	35	85	8	●
DAH3D2A0645A	6.45	35	85	8	●
DAH3D2A0650A	6.5	35	85	8	●
DAH3D2A0655A	6.55	37	85	8	●
DAH3D2A0660A	6.6	37	85	8	●
DAH3D2A0665A	6.65	37	85	8	●
DAH3D2A0670A	6.7	37	85	8	●
DAH3D2A0675A	6.75	37	85	8	●
DAH3D2A0680A	6.8	37	85	8	●
DAH3D2A0685A	6.85	37	85	8	●
DAH3D2A0690A	6.9	37	85	8	●
DAH3D2A0695A	6.95	37	85	8	●
DAH3D2A0070A	7	37	85	8	●
DAH3D2A0705A	7.05	39	90	8	●
DAH3D2A0710A	7.1	39	90	8	●
DAH3D2A0715A	7.15	39	90	8	●
DAH3D2A0720A	7.2	39	90	8	●
DAH3D2A0725A	7.25	39	90	8	●
DAH3D2A0730A	7.3	39	90	8	●
DAH3D2A0735A	7.35	39	90	8	●
DAH3D2A0740A	7.4	39	90	8	●
DAH3D2A0745A	7.45	39	90	8	●
DAH3D2A0750A	7.5	39	90	8	●
DAH3D2A0755A	7.55	42	90	8	●
DAH3D2A0760A	7.6	42	90	8	●
DAH3D2A0765A	7.65	42	90	8	●
DAH3D2A0770A	7.7	42	90	8	●
DAH3D2A0775A	7.75	42	90	8	●
DAH3D2A0780A	7.8	42	90	8	●
DAH3D2A0785A	7.85	42	90	8	●
DAH3D2A0790A	7.9	42	90	8	●
DAH3D2A0795A	7.95	42	90	8	●
DAH3D2A0080A	8	42	90	8	●
DAH3D2A0805A	8.05	45	95	10	●
DAH3D2A0810A	8.1	45	95	10	●
DAH3D2A0815A	8.15	45	95	10	●
DAH3D2A0820A	8.2	45	95	10	●
DAH3D2A0825A	8.25	45	95	10	●
DAH3D2A0830A	8.3	45	95	10	●
DAH3D2A0835A	8.35	45	95	10	●
DAH3D2A0840A	8.4	45	95	10	●
DAH3D2A0845A	8.45	45	95	10	●
DAH3D2A0850A	8.5	45	95	10	●
DAH3D2A0855A	8.55	45	95	10	●
DAH3D2A0860A	8.6	47	95	10	●
DAH3D2A0865A	8.65	47	95	10	●
DAH3D2A0870A	8.7	47	95	10	●
DAH3D2A0875A	8.75	47	95	10	●
DAH3D2A0880A	8.8	47	95	10	●
DAH3D2A0885A	8.85	47	95	10	●
DAH3D2A0890A	8.9	47	95	10	●
DAH3D2A0895A	8.95	47	95	10	●
DAH3D2A0090A	9	47	95	10	●
DAH3D2A0905A	9.05	49	100	10	●
DAH3D2A0910A	9.1	49	100	10	●
DAH3D2A0915A	9.15	49	100	10	●
DAH3D2A0920A	9.2	49	100	10	●
DAH3D2A0925A	9.25	49	100	10	●
DAH3D2A0930A	9.3	49	100	10	●
DAH3D2A0935A	9.35	49	100	10	●
DAH3D2A0940A	9.4	49	100	10	●
DAH3D2A0945A	9.45	49	100	10	●
DAH3D2A0950A	9.5	49	100	10	●
DAH3D2A0955A	9.55	52	100	10	●
DAH3D2A0960A	9.6	52	100	10	●
DAH3D2A0965A	9.65	52	100	10	●
DAH3D2A0970A	9.7	52	100	10	●
DAH3D2A0975A	9.75	52	100	10	●
DAH3D2A0980A	9.8	52	100	10	●
DAH3D2A0985A	9.85	52	100	10	●
DAH3D2A0990A	9.9	52	100	10	●
DAH3D2A0995A	9.95	52	100	10	●
DAH3D2A0100A	10	52	100	10	●
DAH3D2A1005A	10.05	54	105	12	●
DAH3D2A1010A	10.1	54	105	12	●
DAH3D2A1015A	10.15	54	105	12	●
DAH3D2A1020A	10.2	54	105	12	●
DAH3D2A1025A	10.25	54	105	12	●
DAH3D2A1030A	10.3	54	105	12	●
DAH3D2A1035A	10.35	54	105	12	●
DAH3D2A1040A	10.4	54	105	12	●
DAH3D2A1045A	10.45	54	105	12	●
DAH3D2A1050A	10.5	54	105	12	●
DAH3D2A1055A	10.55	56	105	12	●
DAH3D2A1060A	10.6	56	105	12	●
DAH3D2A1065A	10.65	56	105	12	●
DAH3D2A1070A	10.7	56	105	12	●
DAH3D2A1075A	10.75	56	105	12	●
DAH3D2A1080A	10.8	56	105	12	●
DAH3D2A1085A	10.85	56	105	12	●
DAH3D2A1090A	10.9	56	105	12	●
DAH3D2A1095A	10.95	56	105	12	●
DAH3D2A1100A	11	56	105	12	●
DAH3D2A1105A	11.05	58	110	12	●
DAH3D2A1110A	11.1	58	110	12	●
DAH3D2A1115A	11.15	58	110	12	●
DAH3D2A1120A	11.2	58	110	12	●
DAH3D2A1125A	11.25	58	110	12	●
DAH3D2A1130A	11.3	58	110	12	●
DAH3D2A1135A	11.35	58	110	12	●
DAH3D2A1140A	11.4	58	110	12	●
DAH3D2A1145A	11.45	58	110	12	●
DAH3D2A1150A	11.5	58	110	12	●
DAH3D2A1155A	11.55	60	110	12	●
DAH3D2A1160A	11.6	60	110	12	●
DAH3D2A1165A	11.65	60	110	12	●
DAH3D2A1170A	11.7	60	110	12	●
DAH3D2A1175A	11.75	60	110	12	●
DAH3D2A1180A	11.8	60	110	12	●
DAH3D2A1185A	11.85	60	110	12	●
DAH3D2A1190A	11.9	60	110	12	●
DAH3D2A1195A	11.95	60	110	12	●
DAH3D2A1200A	12	60	110	12	●
DAH3D2A1205A	12.05	63	115	13	●
DAH3D2A1210A	12.1	63	115	13	●
DAH3D2A1215A	12.15	63	115	13	●
DAH3D2A1220A	12.2	63	115	13	●
DAH3D2A1225A	12.25	63	115	13	●
DAH3D2A1230A	12.3	63	115	13	●
DAH3D2A1235A	12.35	63	115	13	●
DAH3D2A1240A	12.4	63	115	13	●
DAH3D2A1245A	12.45	63	115	13	●
DAH3D2A1250A	12.5	63	115	13	●
DAH3D2A1255A	12.55	65	115	13	●
DAH3D2A1260A	12.6	65	115	13	●
DAH3D2A1265A	12.65	65	115	13	●
DAH3D2A1270A	12.7	65	115	13	●
DAH3D2A1275A	12.75	65	115	13	●
DAH3D2A1280A	12.8	65	115	13	●
DAH3D2A1285A	12.85	65	115	13	●
DAH3D2A1290A	12.9	65	115	13	●
DAH3D2A1295A	12.95	65	115	13	●
DAH3D2A1300A	13	65	115	13	●
DAH3D2A1305A	13.05	68	125	14	▲
DAH3D2A1310A	13.1	68	125	14	▲
DAH3D2A1315A	13.15	68	125	14	▲
DAH3D2A1320A	13.2	68	125	14	▲
DAH3D2A1325A	13.25	68	125	14	▲
DAH3D2A1330A	13.3	68	125	14	▲
DAH3D2A1335A	13.35	68	125	14	▲
DAH3D2A1340A	13.4	68	125	14	▲
DAH3D2A1345A	13.45	68	125	14	▲
DAH3D2A1350A	13.5	68	125	14	●
DAH3D2A1355A	13.55	70	125	14	▲
DAH3D2A1360A	13.6	70	125	14	▲
DAH3D2A1365A	13.65	70	125	14	▲
DAH3D2A1370A	13.7	70	125	14	▲
DAH3D2A1375A	13.75	70	125	14	▲
DAH3D2A1380A	13.8	70	125	14	▲
DAH3D2A1385A	13.85	70	125	14	▲
DAH3D2A1390A	13.9	70	125	14	▲
DAH3D2A1395A	13.95	70	125	14	▲
DAH3D2A1400A	14	70	125	14	●
DAH3D2A1405A	14.05	73	130	16	▲
DAH3D2A1410A	14.1	73	130	16	▲
DAH3D2A1415A	14.15	73	130	16	▲
DAH3D2A1420A	14.2	73	130	16	▲
DAH3D2A1425A	14.25	73	130	16	▲
DAH3D2A1430A	14.3	73	130	16	▲
DAH3D2A1435A	14.35	73	130	16	▲
DAH3D2A1440A	14.4	73	130	16	▲
DAH3D2A1445A	14.45	73	130	16	▲
DAH3D2A1450A	14.5	73	130	16	●
DAH3D2A1455A	14.55	75	130	16	▲
DAH3D2A1460A	14.6	75	130	16	▲
DAH3D2A1465A	14.65	75	130	16	▲
DAH3D2A1470A	14.7	75	130	16	▲
DAH3D2A1475A	14.75	75	130	16	▲
DAH3D2A1480A	14.8	75	130	16	▲
DAH3D2A1485A	14.85	75	130	16	▲
DAH3D2A1490A	14.9	75	130	16	▲
DAH3D2A1495A	14.95	75	130	16	▲
DAH3D2A1500A	15	75	130	16	●
DAH3D2A1505A	15.05	78	135	16	▲
DAH3D2A1510A	15.1	78	135	16	▲
DAH3D2A1515A	15.15	78	135	16	▲
DAH3D2A1520A	15.2	78	135	16	▲
DAH3D2A1525A	15.25	78	135	16	▲
DAH3D2A1530A	15.3	78	135	16	▲
DAH3D2A1535A	15.35	78	135	16	▲
DAH3D2A1540A	15.4	78	135	16	▲
DAH3D2A1545A	15.45	78	135	16	▲
DAH3D2A1550A	15.5	78	135	16	●
DAH3D2A1555A	15.55	80	135	16	▲
DAH3D2A1560A	15.6	80	135	16	▲
DAH3D2A1565A	15.65	80	135	16	▲
DAH3D2A1570A	15.7	80	135	16	▲
DAH3D2A1575A	15.75	80	135	16	▲
DAH3D2A1580A	15.8	80	135	16	▲
DAH3D2A1585A	15.85	80	135	16	▲
DAH3D2A1590A	15.9	80	135	16	▲
DAH3D2A1595A	15.95	80	135	16	▲
DAH3D2A1600A	16	80	135	16	●

: 接單生產品 : 在庫品▲ : 訂製品
