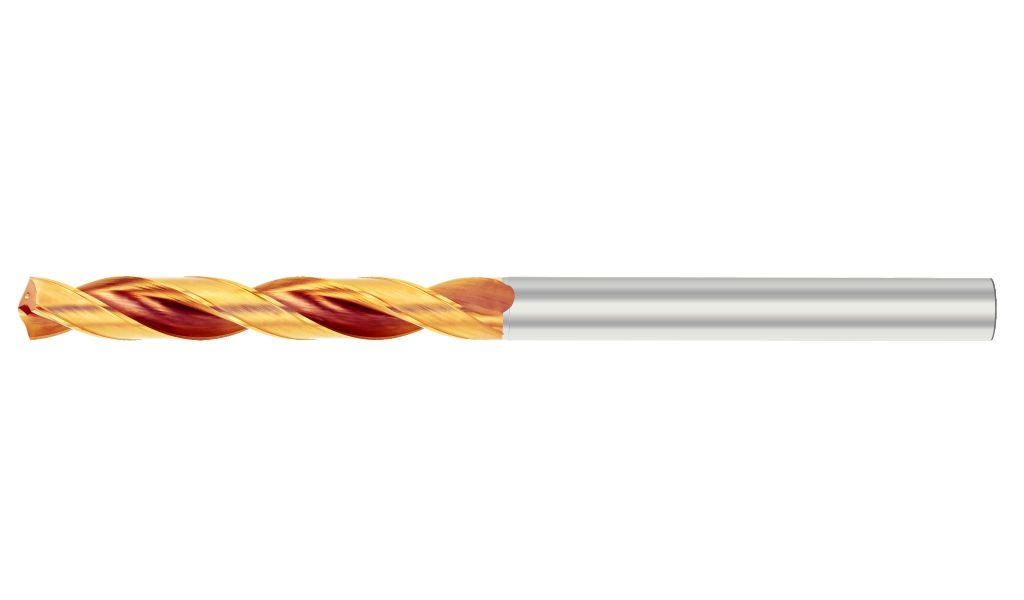

鎢鋼油孔鑽鉸刀X5D

鎢鋼油孔鑽鉸刀X5D

鎢鋼油孔鑽鉸刀X5D

鎢鋼油孔鑽鉸刀X5D

鎢鋼油孔鑽鉸刀X5D

鎢鋼油孔鑽鉸刀X5D

鎢鋼油孔鑽鉸刀X5D

鎢鋼油孔鑽鉸刀X5D

鎢鋼鑽鉸刀

◆5倍長。
◆刀刃設計可達定位功能。
◆搭配中心出水孔大小，兼具剛性與潤滑的效果。
◆適用於切削鋼鐵材料、鑄鐵、鋁、不鏽鋼、鈦合金、鎳基合金。

此目錄下載

切削條件表下載

下一頁

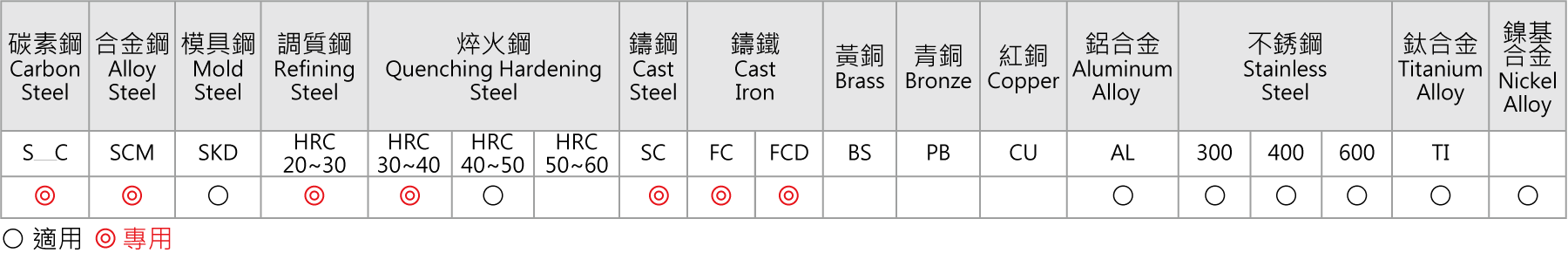

刀具使用材質規範

特性:
刀刃設計可達定位功能，提升加工穩定度，在支撐性、真圓度方面皆有良好表現，搭配中心出水孔大小，兼具剛性與潤滑效果。

篩選器

重置

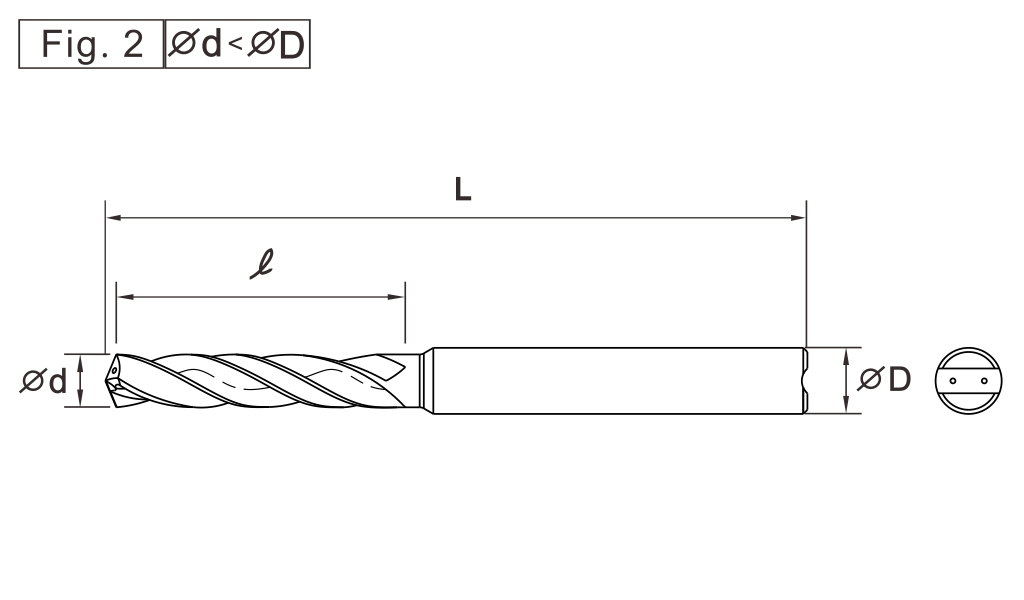

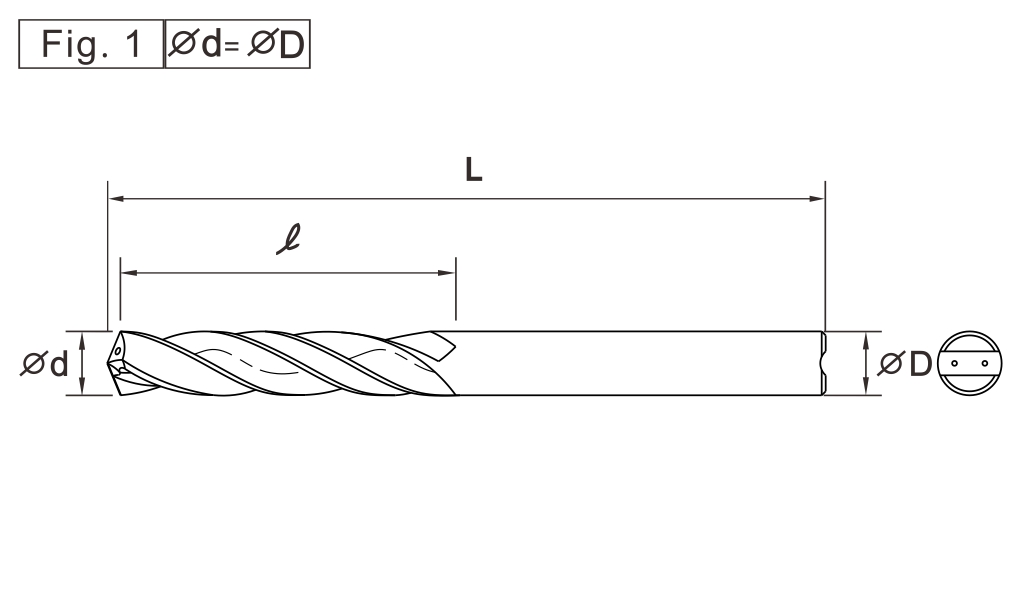

d

刃徑

ℓ

溝長

L

全長

60
65
70
75
80
85
90
100
105
110
115
120
125
130
135
140
145
150
155
160
165
170
175
180

D

柄徑

4
6
8
10
12
13
14
16

AHG5D2B

單位 : mm (Unit:mm)

刀具 Model NO.	刃徑 d Diameter	溝長 ℓ Grooving Length	全長 L Overall Length	柄徑 D Shank Diameter	在庫
AHG5D2B0020A	2	20	60	4	●
AHG5D2B0210A	2.1	20	60	4	●
AHG5D2B0220A	2.2	20	60	4	●
AHG5D2B0230A	2.3	20	60	4	●
AHG5D2B0240A	2.4	20	60	4	●
AHG5D2B0250A	2.5	23	65	4	●
AHG5D2B0255A	2.55	23	65	4	●
AHG5D2B0260A	2.6	23	65	4	●
AHG5D2B0265A	2.65	23	65	4	●
AHG5D2B0270A	2.7	23	65	4	●
AHG5D2B0275A	2.75	23	65	4	●
AHG5D2B0280A	2.8	23	65	4	●
AHG5D2B0285A	2.85	23	65	4	●
AHG5D2B0290A	2.9	25	65	4	●
AHG5D2B0295A	2.95	25	65	4	●
AHG5D2B0030A	3	25	65	4	●
AHG5D2B3054A	3.05	28	70	4	●
AHG5D2B3104A	3.1	28	70	4	●
AHG5D2B3154A	3.15	28	70	4	●
AHG5D2B3204A	3.2	28	70	4	●
AHG5D2B3254A	3.25	28	70	4	●
AHG5D2B3304A	3.3	28	70	4	●
AHG5D2B3354A	3.35	28	70	4	●
AHG5D2B3404A	3.4	30	70	4	●
AHG5D2B3454A	3.45	30	70	4	●
AHG5D2B3504A	3.5	30	70	4	●
AHG5D2B3554A	3.55	32	75	4	●
AHG5D2B3604A	3.6	32	75	4	●
AHG5D2B3654A	3.65	32	75	4	●
AHG5D2B3704A	3.7	32	75	4	●
AHG5D2B3754A	3.75	32	75	4	●
AHG5D2B3804A	3.8	34	75	4	●
AHG5D2B3854A	3.85	34	75	4	●
AHG5D2B3904A	3.9	34	75	4	●
AHG5D2B3954A	3.95	34	75	4	●
AHG5D2B4004A	4	34	75	4	●
AHG5D2B0305A	3.05	28	70	6	●
AHG5D2B3006A	3	25	65	6	●
AHG5D2B0310A	3.1	28	70	6	●
AHG5D2B0315A	3.15	28	70	6	●
AHG5D2B0320A	3.2	28	70	6	●
AHG5D2B0325A	3.25	28	70	6	●
AHG5D2B0330A	3.3	28	70	6	●
AHG5D2B0335A	3.35	28	70	6	●
AHG5D2B0340A	3.4	30	75	6	●
AHG5D2B0345A	3.45	30	75	6	●
AHG5D2B0350A	3.5	30	75	6	●
AHG5D2B0355A	3.55	32	75	6	●
AHG5D2B0360A	3.6	32	75	6	●
AHG5D2B0365A	3.65	32	75	6	●
AHG5D2B0370A	3.7	32	75	6	●
AHG5D2B0375A	3.75	32	75	6	●
AHG5D2B0380A	3.8	34	75	6	●
AHG5D2B0385A	3.85	34	75	6	●
AHG5D2B0390A	3.9	34	75	6	●
AHG5D2B0395A	3.95	34	75	6	●
AHG5D2B0040A	4	34	75	6	●
AHG5D2B0405A	4.05	35	75	6	●
AHG5D2B0410A	4.1	35	75	6	●
AHG5D2B0415A	4.15	35	75	6	●
AHG5D2B0420A	4.2	35	75	6	●
AHG5D2B0425A	4.25	35	75	6	●
AHG5D2B0430A	4.3	38	80	6	●
AHG5D2B0435A	4.35	38	80	6	●
AHG5D2B0440A	4.4	38	80	6	●
AHG5D2B0445A	4.45	38	80	6	●
AHG5D2B0450A	4.5	38	80	6	●
AHG5D2B0455A	4.55	38	80	6	●
AHG5D2B0460A	4.6	38	80	6	●
AHG5D2B0465A	4.65	38	80	6	●
AHG5D2B0470A	4.7	38	80	6	●
AHG5D2B0475A	4.75	38	80	6	●
AHG5D2B0480A	4.8	38	80	6	●
AHG5D2B0485A	4.85	38	80	6	●
AHG5D2B0490A	4.9	38	80	6	●
AHG5D2B0495A	4.95	38	80	6	●
AHG5D2B0050A	5	38	80	6	●
AHG5D2B0505A	5.05	41	85	6	●
AHG5D2B0510A	5.1	41	85	6	●
AHG5D2B0515A	5.15	41	85	6	●
AHG5D2B0520A	5.2	41	85	6	●
AHG5D2B0525A	5.25	41	85	6	●
AHG5D2B0530A	5.3	41	85	6	●
AHG5D2B0535A	5.35	41	85	6	●
AHG5D2B0540A	5.4	41	85	6	●
AHG5D2B0545A	5.45	41	85	6	●
AHG5D2B0550A	5.5	41	85	6	●
AHG5D2B0555A	5.55	44	90	6	●
AHG5D2B0560A	5.6	44	90	6	●
AHG5D2B0565A	5.65	44	90	6	●
AHG5D2B0570A	5.7	44	90	6	●
AHG5D2B0575A	5.75	44	90	6	●
AHG5D2B0580A	5.8	44	90	6	●
AHG5D2B0585A	5.85	44	90	6	●
AHG5D2B0590A	5.9	44	90	6	●
AHG5D2B0595A	5.95	44	90	6	●
AHG5D2B0060A	6	44	90	6	●
AHG5D2B0605A	6.05	48	90	8	●
AHG5D2B0610A	6.1	48	90	8	●
AHG5D2B0615A	6.15	48	90	8	●
AHG5D2B0620A	6.2	48	90	8	●
AHG5D2B0625A	6.25	48	90	8	●
AHG5D2B0630A	6.3	48	90	8	●
AHG5D2B0635A	6.35	48	90	8	●
AHG5D2B0640A	6.4	48	90	8	●
AHG5D2B0645A	6.45	48	90	8	●
AHG5D2B0650A	6.5	48	90	8	●
AHG5D2B0655A	6.55	51	100	8	●
AHG5D2B0660A	6.6	51	100	8	●
AHG5D2B0665A	6.65	51	100	8	●
AHG5D2B0670A	6.7	51	100	8	●
AHG5D2B0675A	6.75	51	100	8	●
AHG5D2B0680A	6.8	53	100	8	●
AHG5D2B0685A	6.85	53	100	8	●
AHG5D2B0690A	6.9	53	100	8	●
AHG5D2B0695A	6.95	53	100	8	●
AHG5D2B0070A	7	53	100	8	●
AHG5D2B0705A	7.05	55	100	8	●
AHG5D2B0710A	7.1	55	100	8	●
AHG5D2B0715A	7.15	55	100	8	●
AHG5D2B0720A	7.2	55	100	8	●
AHG5D2B0725A	7.25	55	100	8	●
AHG5D2B0730A	7.3	57	100	8	●
AHG5D2B0735A	7.35	57	100	8	●
AHG5D2B0740A	7.4	57	100	8	●
AHG5D2B0745A	7.45	57	100	8	●
AHG5D2B0750A	7.5	57	100	8	●
AHG5D2B0755A	7.55	59	105	8	●
AHG5D2B0760A	7.6	59	105	8	●
AHG5D2B0765A	7.65	59	105	8	●
AHG5D2B0770A	7.7	59	105	8	●
AHG5D2B0775A	7.75	61	105	8	●
AHG5D2B0780A	7.8	61	105	8	●
AHG5D2B0785A	7.85	61	105	8	●
AHG5D2B0790A	7.9	61	105	8	●
AHG5D2B0795A	7.95	61	105	8	●
AHG5D2B0080A	8	61	105	8	●
AHG5D2B0805A	8.05	63	110	10	○
AHG5D2B0810A	8.1	63	110	10	●
AHG5D2B0815A	8.15	63	110	10	○
AHG5D2B0820A	8.2	63	110	10	●
AHG5D2B0825A	8.25	65	110	10	○
AHG5D2B0830A	8.3	65	110	10	●
AHG5D2B0835A	8.35	65	110	10	○
AHG5D2B0840A	8.4	65	110	10	●
AHG5D2B0845A	8.45	65	110	10	○
AHG5D2B0850A	8.5	65	110	10	●
AHG5D2B0855A	8.55	67	110	10	○
AHG5D2B0860A	8.6	67	115	10	●
AHG5D2B0865A	8.65	67	115	10	○
AHG5D2B0870A	8.7	67	115	10	●
AHG5D2B0875A	8.75	69	115	10	○
AHG5D2B0880A	8.8	69	115	10	●
AHG5D2B0885A	8.85	69	115	10	○
AHG5D2B0890A	8.9	69	115	10	●
AHG5D2B0895A	8.95	69	115	10	○
AHG5D2B0090A	9	69	115	10	●
AHG5D2B0905A	9.05	71	120	10	○
AHG5D2B0910A	9.1	71	120	10	●
AHG5D2B0915A	9.15	71	120	10	○
AHG5D2B0920A	9.2	71	120	10	●
AHG5D2B0925A	9.25	73	120	10	○
AHG5D2B0930A	9.3	73	120	10	●
AHG5D2B0935A	9.35	73	120	10	○
AHG5D2B0940A	9.4	73	120	10	●
AHG5D2B0945A	9.45	73	120	10	○
AHG5D2B0950A	9.5	73	120	10	●
AHG5D2B0955A	9.55	75	125	10	○
AHG5D2B0960A	9.6	75	125	10	●
AHG5D2B0965A	9.65	75	125	10	○
AHG5D2B0970A	9.7	75	125	10	●
AHG5D2B0975A	9.75	77	125	10	○
AHG5D2B0980A	9.8	77	125	10	●
AHG5D2B0985A	9.85	77	125	10	○
AHG5D2B0990A	9.9	77	125	10	●
AHG5D2B0995A	9.95	77	125	10	○
AHG5D2B0100A	10	77	125	10	●
AHG5D2B1005A	10.05	79	125	12	○
AHG5D2B1010A	10.1	79	125	12	●
AHG5D2B1015A	10.15	79	125	12	○
AHG5D2B1020A	10.2	79	125	12	●
AHG5D2B1025A	10.25	79	125	12	○
AHG5D2B1030A	10.3	81	125	12	●
AHG5D2B1035A	10.35	81	125	12	○
AHG5D2B1040A	10.4	81	125	12	●
AHG5D2B1045A	10.45	81	125	12	○
AHG5D2B1050A	10.5	81	125	12	●
AHG5D2B1055A	10.55	83	130	12	○
AHG5D2B1060A	10.6	83	130	12	●
AHG5D2B1065A	10.65	83	130	12	○
AHG5D2B1070A	10.7	83	130	12	●
AHG5D2B1075A	10.75	85	130	12	○
AHG5D2B1080A	10.8	85	130	12	●
AHG5D2B1085A	10.85	85	130	12	○
AHG5D2B1090A	10.9	85	130	12	●
AHG5D2B1095A	10.95	85	130	12	○
AHG5D2B1100A	11	85	130	12	●
AHG5D2B1105A	11.05	87	135	12	○
AHG5D2B1110A	11.1	87	135	12	●
AHG5D2B1115A	11.15	87	135	12	○
AHG5D2B1120A	11.2	87	135	12	●
AHG5D2B1125A	11.25	89	135	12	○
AHG5D2B1130A	11.3	89	135	12	●
AHG5D2B1135A	11.35	89	135	12	○
AHG5D2B1140A	11.4	89	135	12	●
AHG5D2B1145A	11.45	89	135	12	○
AHG5D2B1150A	11.5	89	135	12	●
AHG5D2B1155A	11.55	91	140	12	○
AHG5D2B1160A	11.6	91	140	12	●
AHG5D2B1165A	11.65	91	140	12	○
AHG5D2B1170A	11.7	91	140	12	●
AHG5D2B1175A	11.75	93	140	12	○
AHG5D2B1180A	11.8	93	140	12	●
AHG5D2B1185A	11.85	93	140	12	○
AHG5D2B1190A	11.9	93	140	12	●
AHG5D2B1195A	11.95	93	140	12	○
AHG5D2B1200A	12	93	140	12	●
AHG5D2B1205A	12.05	95	140	13	○
AHG5D2B1210A	12.1	95	140	13	●
AHG5D2B1215A	12.15	95	140	13	○
AHG5D2B1220A	12.2	95	140	13	●
AHG5D2B1225A	12.25	97	145	13	○
AHG5D2B1230A	12.3	97	145	13	●
AHG5D2B1235A	12.35	97	145	13	○
AHG5D2B1240A	12.4	97	145	13	●
AHG5D2B1245A	12.45	97	145	13	○
AHG5D2B1250A	12.5	97	145	13	●
AHG5D2B1255A	12.55	99	145	13	○
AHG5D2B1260A	12.6	99	145	13	●
AHG5D2B1265A	12.65	99	145	13	○
AHG5D2B1270A	12.7	99	145	13	●
AHG5D2B1275A	12.75	101	150	13	○
AHG5D2B1280A	12.8	101	150	13	●
AHG5D2B1285A	12.85	101	150	13	○
AHG5D2B1290A	12.9	101	150	13	●
AHG5D2B1295A	12.95	101	150	13	○
AHG5D2B1300A	13	101	150	13	●
AHG5D2B1310A	13.1	103	150	14	○
AHG5D2B1320A	13.2	103	150	14	○
AHG5D2B1330A	13.3	105	155	14	○
AHG5D2B1340A	13.4	105	155	14	○
AHG5D2B1350A	13.5	105	155	14	●
AHG5D2B1360A	13.6	107	155	14	○
AHG5D2B1370A	13.7	107	155	14	○
AHG5D2B1380A	13.8	109	160	14	○
AHG5D2B1390A	13.9	109	160	14	○
AHG5D2B1400A	14	109	160	14	●
AHG5D2B1410A	14.1	111	160	16	○
AHG5D2B1420A	14.2	111	160	16	○
AHG5D2B1430A	14.3	113	165	16	○
AHG5D2B1440A	14.4	113	165	16	○
AHG5D2B1450A	14.5	113	165	16	●
AHG5D2B1460A	14.6	115	165	16	○
AHG5D2B1470A	14.7	115	165	16	○
AHG5D2B1480A	14.8	117	170	16	○
AHG5D2B1490A	14.9	117	170	16	○
AHG5D2B1500A	15	117	170	16	●
AHG5D2B1510A	15.1	119	170	16	○
AHG5D2B1520A	15.2	119	170	16	○
AHG5D2B1530A	15.3	121	175	16	○
AHG5D2B1540A	15.4	121	175	16	○
AHG5D2B1550A	15.5	121	175	16	●
AHG5D2B1560A	15.6	123	175	16	○
AHG5D2B1570A	15.7	123	175	16	○
AHG5D2B1580A	15.8	125	180	16	○
AHG5D2B1590A	15.9	125	180	16	○
AHG5D2B1600A	16	125	180	16	●

: 接單生產品 : 在庫品▲ : 訂製品
