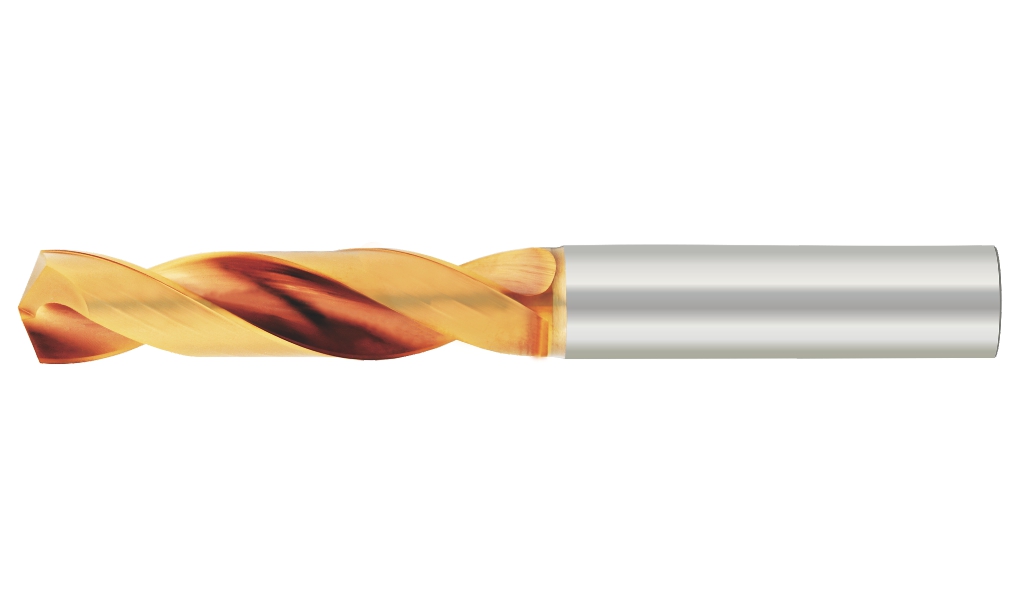

鎢鋼高速鑽頭X3D

鎢鋼高速鑽頭X3D

鎢鋼高速鑽頭X3D

鎢鋼高速鑽頭X3D

鎢鋼高速鑽頭X3D

鎢鋼鑽頭

◆3倍長。
◆特殊刀刃形狀。
◆適用於切削鋼鐵材料、鑄鐵、不銹鋼。

此目錄下載

切削條件表下載

上一頁

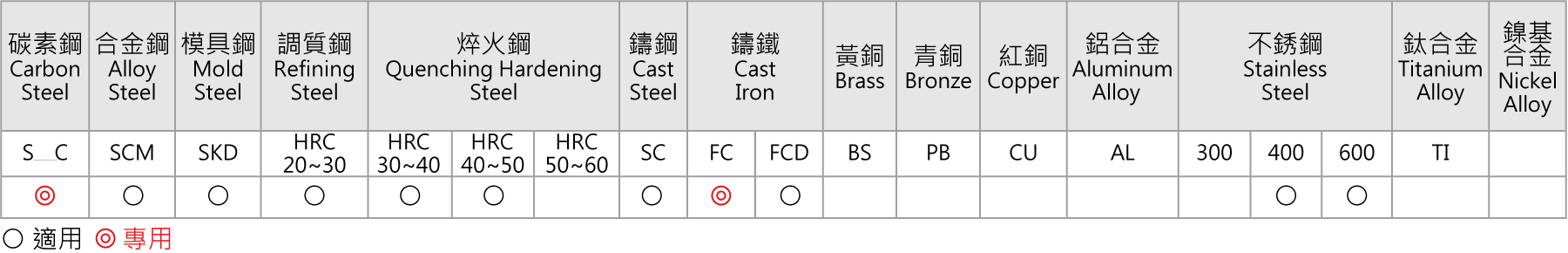

刀具使用材質規範

特性 :
使用了優異耐切削性和耐磨性的特殊特殊刀刃形狀，不僅提升了刀具的穩定性，其鑽頭的中心定位也更加準確。

篩選器

重置

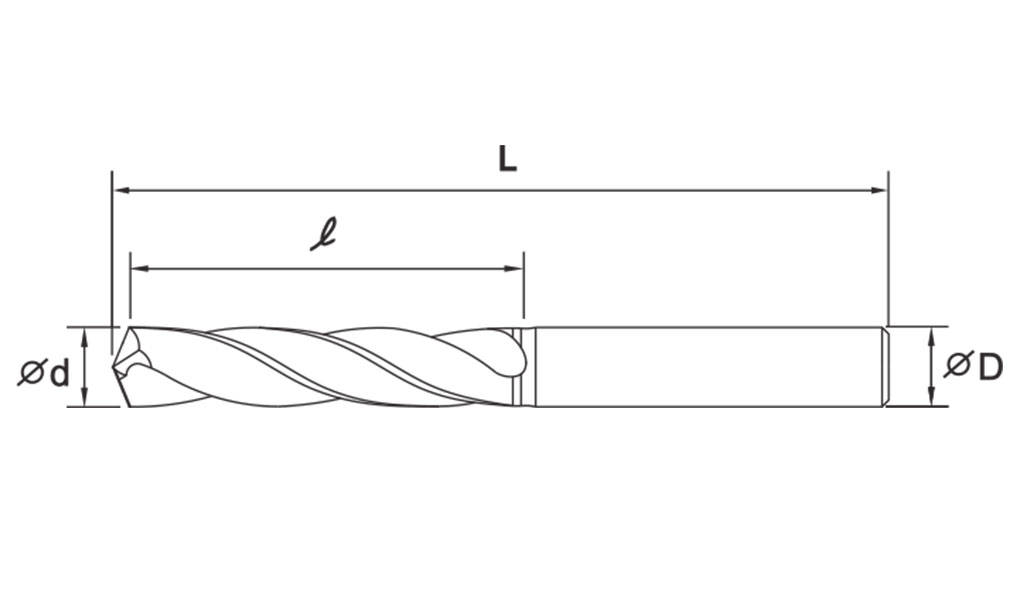

d

刃徑

ℓ

溝長

16
18
21
23
26
29
30
33
35
36
38
41
43
46
47
49
51
54
55
58
60
62
64
66
67
70

L

全長

50
55
60
65
70
75
80
85
90
95
105
110
115
120
125

D

柄徑

4
6
8
10
12
13
14
16

DAS3D2A

單位 : mm (Unit:mm)

刀具 Model NO.	刃徑 d Diameter	溝長 ℓ Grooving Length	全長 L Overall Length	柄徑 D Shank Diameter	在庫
DAS3D2A0250A	2.5	16	50	4	●
DAS3D2A0255A	2.55	16	50	4	●
DAS3D2A0260A	2.6	16	50	4	●
DAS3D2A0265A	2.65	16	50	4	●
DAS3D2A0270A	2.7	16	50	4	●
DAS3D2A0275A	2.75	16	50	4	●
DAS3D2A0280A	2.8	16	50	4	●
DAS3D2A0285A	2.85	16	50	4	●
DAS3D2A0290A	2.9	16	50	4	●
DAS3D2A0295A	2.95	16	50	4	●
DAS3D2A0030A	3	16	50	4	●
DAS3D2A3054A	3.05	18	55	4	●
DAS3D2A3104A	3.1	18	55	4	●
DAS3D2A3154A	3.15	18	55	4	●
DAS3D2A3204A	3.2	18	55	4	●
DAS3D2A3254A	3.25	18	55	4	●
DAS3D2A3304A	3.3	18	55	4	●
DAS3D2A3354A	3.35	18	55	4	●
DAS3D2A3404A	3.4	18	55	4	●
DAS3D2A3454A	3.45	18	55	4	●
DAS3D2A3504A	3.5	18	55	4	●
DAS3D2A3554A	3.55	21	60	4	●
DAS3D2A3604A	3.6	21	60	4	●
DAS3D2A3654A	3.65	21	60	4	●
DAS3D2A3704A	3.7	21	60	4	●
DAS3D2A3754A	3.75	21	60	4	●
DAS3D2A3804A	3.8	21	60	4	●
DAS3D2A3854A	3.85	21	60	4	●
DAS3D2A3904A	3.9	21	60	4	●
DAS3D2A3954A	3.95	21	60	4	●
DAS3D2A4004A	4	21	60	4	●
DAS3D2A3006A	3	16	50	6	●
DAS3D2A0305A	3.05	18	55	6	●
DAS3D2A0310A	3.1	18	55	6	●
DAS3D2A0315A	3.15	18	55	6	●
DAS3D2A0320A	3.2	18	55	6	●
DAS3D2A0325A	3.25	18	55	6	●
DAS3D2A0330A	3.3	18	55	6	●
DAS3D2A0335A	3.35	18	55	6	●
DAS3D2A0340A	3.4	18	55	6	●
DAS3D2A0345A	3.45	18	55	6	●
DAS3D2A0350A	3.5	18	55	6	●
DAS3D2A0355A	3.55	21	60	6	●
DAS3D2A0360A	3.6	21	60	6	●
DAS3D2A0365A	3.65	21	60	6	●
DAS3D2A0370A	3.7	21	60	6	●
DAS3D2A0375A	3.75	21	60	6	●
DAS3D2A0380A	3.8	21	60	6	●
DAS3D2A0385A	3.85	21	60	6	●
DAS3D2A0390A	3.9	21	60	6	●
DAS3D2A0395A	3.95	21	60	6	●
DAS3D2A0040A	4	21	60	6	●
DAS3D2A0405A	4.05	23	65	6	●
DAS3D2A0410A	4.1	23	65	6	●
DAS3D2A0415A	4.15	23	65	6	●
DAS3D2A0420A	4.2	23	65	6	●
DAS3D2A0425A	4.25	23	65	6	●
DAS3D2A0430A	4.3	23	65	6	●
DAS3D2A0435A	4.35	23	65	6	●
DAS3D2A0440A	4.4	23	65	6	●
DAS3D2A0445A	4.45	23	65	6	●
DAS3D2A0450A	4.5	23	65	6	●
DAS3D2A0455A	4.55	26	65	6	●
DAS3D2A0460A	4.6	26	65	6	●
DAS3D2A0465A	4.65	26	65	6	●
DAS3D2A0470A	4.7	26	65	6	●
DAS3D2A0475A	4.75	26	65	6	●
DAS3D2A0480A	4.8	26	65	6	●
DAS3D2A0485A	4.85	26	65	6	●
DAS3D2A0490A	4.9	26	65	6	●
DAS3D2A0495A	4.95	26	65	6	●
DAS3D2A0050A	5	26	65	6	●
DAS3D2A0505A	5.05	29	70	6	●
DAS3D2A0510A	5.1	29	70	6	●
DAS3D2A0515A	5.15	29	70	6	●
DAS3D2A0520A	5.2	29	70	6	●
DAS3D2A0525A	5.25	29	70	6	●
DAS3D2A0530A	5.3	29	70	6	●
DAS3D2A0535A	5.35	29	70	6	●
DAS3D2A0540A	5.4	29	70	6	●
DAS3D2A0545A	5.45	29	70	6	●
DAS3D2A0550A	5.5	29	70	6	●
DAS3D2A0555A	5.55	30	70	6	●
DAS3D2A0560A	5.6	30	70	6	●
DAS3D2A0565A	5.65	30	70	6	●
DAS3D2A0570A	5.7	30	70	6	●
DAS3D2A0575A	5.75	30	70	6	●
DAS3D2A0580A	5.8	30	70	6	●
DAS3D2A0585A	5.85	30	70	6	●
DAS3D2A0590A	5.9	30	70	6	●
DAS3D2A0595A	5.95	30	70	6	●
DAS3D2A0060A	6	30	70	6	●
DAS3D2A0605A	6.05	33	75	8	●
DAS3D2A0610A	6.1	33	75	8	●
DAS3D2A0615A	6.15	33	75	8	●
DAS3D2A0620A	6.2	33	75	8	●
DAS3D2A0625A	6.25	33	75	8	●
DAS3D2A0630A	6.3	33	75	8	●
DAS3D2A0635A	6.35	33	75	8	●
DAS3D2A0640A	6.4	33	75	8	●
DAS3D2A0645A	6.45	33	75	8	●
DAS3D2A0650A	6.5	33	75	8	●
DAS3D2A0655A	6.55	35	80	8	●
DAS3D2A0660A	6.6	35	80	8	●
DAS3D2A0665A	6.65	35	80	8	●
DAS3D2A0670A	6.7	35	80	8	●
DAS3D2A0675A	6.75	35	80	8	●
DAS3D2A0680A	6.8	35	80	8	●
DAS3D2A0685A	6.85	35	80	8	●
DAS3D2A0690A	6.9	35	80	8	●
DAS3D2A0695A	6.95	35	80	8	●
DAS3D2A0070A	7	35	80	8	●
DAS3D2A0705A	7.05	36	80	8	●
DAS3D2A0710A	7.1	36	80	8	●
DAS3D2A0715A	7.15	36	80	8	●
DAS3D2A0720A	7.2	36	80	8	●
DAS3D2A0725A	7.25	36	80	8	●
DAS3D2A0730A	7.3	36	80	8	●
DAS3D2A0735A	7.35	36	80	8	●
DAS3D2A0740A	7.4	36	80	8	●
DAS3D2A0745A	7.45	36	80	8	●
DAS3D2A0750A	7.5	36	80	8	●
DAS3D2A0755A	7.55	38	85	8	●
DAS3D2A0760A	7.6	38	85	8	●
DAS3D2A0765A	7.65	38	85	8	●
DAS3D2A0770A	7.7	38	85	8	●
DAS3D2A0775A	7.75	38	85	8	●
DAS3D2A0780A	7.8	38	85	8	●
DAS3D2A0785A	7.85	38	85	8	●
DAS3D2A0790A	7.9	38	85	8	●
DAS3D2A0795A	7.95	38	85	8	●
DAS3D2A0080A	8	38	85	8	●
DAS3D2A0805A	8.05	41	85	10	●
DAS3D2A0810A	8.1	41	85	10	●
DAS3D2A0815A	8.15	41	85	10	●
DAS3D2A0820A	8.2	41	85	10	●
DAS3D2A0825A	8.25	41	85	10	●
DAS3D2A0830A	8.3	41	85	10	●
DAS3D2A0835A	8.35	41	85	10	●
DAS3D2A0840A	8.4	41	85	10	●
DAS3D2A0845A	8.45	41	85	10	●
DAS3D2A0850A	8.5	41	85	10	●
DAS3D2A0855A	8.55	41	85	10	●
DAS3D2A0860A	8.6	43	90	10	●
DAS3D2A0865A	8.65	43	90	10	●
DAS3D2A0870A	8.7	43	90	10	●
DAS3D2A0875A	8.75	43	90	10	●
DAS3D2A0880A	8.8	43	90	10	●
DAS3D2A0885A	8.85	43	90	10	●
DAS3D2A0890A	8.9	43	90	10	●
DAS3D2A0895A	8.95	43	90	10	●
DAS3D2A0090A	9	43	90	10	●
DAS3D2A0905A	9.05	46	90	10	●
DAS3D2A0910A	9.1	46	90	10	●
DAS3D2A0915A	9.15	46	90	10	●
DAS3D2A0920A	9.2	46	90	10	●
DAS3D2A0925A	9.25	46	90	10	●
DAS3D2A0930A	9.3	46	90	10	●
DAS3D2A0935A	9.35	46	90	10	●
DAS3D2A0940A	9.4	46	90	10	●
DAS3D2A0945A	9.45	46	90	10	●
DAS3D2A0950A	9.5	46	90	10	●
DAS3D2A0955A	9.55	47	95	10	●
DAS3D2A0960A	9.6	47	95	10	●
DAS3D2A0965A	9.65	47	95	10	●
DAS3D2A0970A	9.7	47	95	10	●
DAS3D2A0975A	9.75	47	95	10	●
DAS3D2A0980A	9.8	47	95	10	●
DAS3D2A0985A	9.85	47	95	10	●
DAS3D2A0990A	9.9	47	95	10	●
DAS3D2A0995A	9.95	47	95	10	●
DAS3D2A0100A	10	47	95	10	●
DAS3D2A1005A	10.05	49	95	12	●
DAS3D2A1010A	10.1	49	95	12	●
DAS3D2A1015A	10.15	49	95	12	●
DAS3D2A1020A	10.2	49	95	12	●
DAS3D2A1025A	10.25	49	95	12	●
DAS3D2A1030A	10.3	49	95	12	●
DAS3D2A1035A	10.35	49	95	12	●
DAS3D2A1040A	10.4	49	95	12	●
DAS3D2A1045A	10.45	49	95	12	●
DAS3D2A1050A	10.5	49	95	12	●
DAS3D2A1055A	10.55	51	105	12	●
DAS3D2A1060A	10.6	51	105	12	●
DAS3D2A1065A	10.65	51	105	12	●
DAS3D2A1070A	10.7	51	105	12	●
DAS3D2A1075A	10.75	51	105	12	●
DAS3D2A1080A	10.8	51	105	12	●
DAS3D2A1085A	10.85	51	105	12	●
DAS3D2A1090A	10.9	51	105	12	●
DAS3D2A1095A	10.95	51	105	12	●
DAS3D2A1100A	11	51	105	12	●
DAS3D2A1105A	11.05	54	105	12	●
DAS3D2A1110A	11.1	54	105	12	●
DAS3D2A1115A	11.15	54	105	12	●
DAS3D2A1120A	11.2	54	105	12	●
DAS3D2A1125A	11.25	54	105	12	●
DAS3D2A1130A	11.3	54	105	12	●
DAS3D2A1135A	11.35	54	105	12	●
DAS3D2A1140A	11.4	54	105	12	●
DAS3D2A1145A	11.45	54	105	12	●
DAS3D2A1150A	11.5	54	105	12	●
DAS3D2A1155A	11.55	55	105	12	●
DAS3D2A1160A	11.6	55	105	12	●
DAS3D2A1165A	11.65	55	105	12	●
DAS3D2A1170A	11.7	55	105	12	●
DAS3D2A1175A	11.75	55	105	12	●
DAS3D2A1180A	11.8	55	105	12	●
DAS3D2A1185A	11.85	55	105	12	●
DAS3D2A1190A	11.9	55	105	12	●
DAS3D2A1195A	11.95	55	105	12	●
DAS3D2A1200A	12	55	105	12	●
DAS3D2A1205A	12.05	58	110	13	●
DAS3D2A1210A	12.1	58	110	13	●
DAS3D2A1215A	12.15	58	110	13	●
DAS3D2A1220A	12.2	58	110	13	●
DAS3D2A1225A	12.25	58	110	13	●
DAS3D2A1230A	12.3	58	110	13	●
DAS3D2A1235A	12.35	58	110	13	●
DAS3D2A1240A	12.4	58	110	13	●
DAS3D2A1245A	12.45	58	110	13	●
DAS3D2A1250A	12.5	58	110	13	●
DAS3D2A1255A	12.55	58	110	13	●
DAS3D2A1260A	12.6	58	110	13	●
DAS3D2A1265A	12.65	58	110	13	●
DAS3D2A1270A	12.7	58	110	13	●
DAS3D2A1275A	12.75	58	110	13	●
DAS3D2A1280A	12.8	58	110	13	●
DAS3D2A1285A	12.85	58	110	13	●
DAS3D2A1290A	12.9	58	110	13	●
DAS3D2A1295A	12.95	58	110	13	●
DAS3D2A1300A	13	58	110	13	●
DAS3D2A1305A	13.05	60	115	14	▲
DAS3D2A1310A	13.1	60	115	14	▲
DAS3D2A1315A	13.15	60	115	14	▲
DAS3D2A1320A	13.2	60	115	14	▲
DAS3D2A1325A	13.25	60	115	14	▲
DAS3D2A1330A	13.3	60	115	14	▲
DAS3D2A1335A	13.35	60	115	14	▲
DAS3D2A1340A	13.4	60	115	14	▲
DAS3D2A1345A	13.45	60	115	14	▲
DAS3D2A1350A	13.5	60	115	14	●
DAS3D2A1355A	13.55	62	115	14	▲
DAS3D2A1360A	13.6	62	115	14	▲
DAS3D2A1365A	13.65	62	115	14	▲
DAS3D2A1370A	13.7	62	115	14	▲
DAS3D2A1375A	13.75	62	115	14	▲
DAS3D2A1380A	13.8	62	115	14	▲
DAS3D2A1385A	13.85	62	115	14	▲
DAS3D2A1390A	13.9	62	115	14	▲
DAS3D2A1395A	13.95	62	115	14	▲
DAS3D2A1400A	14	62	115	14	●
DAS3D2A1405A	14.05	64	120	16	▲
DAS3D2A1410A	14.1	64	120	16	▲
DAS3D2A1415A	14.15	64	120	16	▲
DAS3D2A1420A	14.2	64	120	16	▲
DAS3D2A1425A	14.25	64	120	16	▲
DAS3D2A1430A	14.3	64	120	16	▲
DAS3D2A1435A	14.35	64	120	16	▲
DAS3D2A1440A	14.4	64	120	16	▲
DAS3D2A1445A	14.45	64	120	16	▲
DAS3D2A1450A	14.5	64	120	16	●
DAS3D2A1455A	14.55	66	120	16	▲
DAS3D2A1460A	14.6	66	120	16	▲
DAS3D2A1465A	14.65	66	120	16	▲
DAS3D2A1470A	14.7	66	120	16	▲
DAS3D2A1475A	14.75	66	120	16	▲
DAS3D2A1480A	14.8	66	120	16	▲
DAS3D2A1485A	14.85	66	120	16	▲
DAS3D2A1490A	14.9	66	120	16	▲
DAS3D2A1495A	14.95	66	120	16	▲
DAS3D2A1500A	15	66	120	16	●
DAS3D2A1505A	15.05	67	125	16	▲
DAS3D2A1510A	15.1	67	125	16	▲
DAS3D2A1515A	15.15	67	125	16	▲
DAS3D2A1520A	15.2	67	125	16	▲
DAS3D2A1525A	15.25	67	125	16	▲
DAS3D2A1530A	15.3	67	125	16	▲
DAS3D2A1535A	15.35	67	125	16	▲
DAS3D2A1540A	15.4	67	125	16	▲
DAS3D2A1545A	15.45	67	125	16	▲
DAS3D2A1550A	15.5	67	125	16	●
DAS3D2A1555A	15.55	70	125	16	▲
DAS3D2A1560A	15.6	70	125	16	▲
DAS3D2A1565A	15.65	70	125	16	▲
DAS3D2A1570A	15.7	70	125	16	▲
DAS3D2A1575A	15.75	70	125	16	▲
DAS3D2A1580A	15.8	70	125	16	▲
DAS3D2A1585A	15.85	70	125	16	▲
DAS3D2A1590A	15.9	70	125	16	▲
DAS3D2A1595A	15.95	70	125	16	▲
DAS3D2A1600A	16	70	125	16	●

: 接單生產品 : 在庫品▲ : 訂製品
