Carbide Aluminum End Mills-U-Flute Shape-3 Flutes-B

Carbide Aluminum End Mills-U-Flute Shape-3 Flutes-B

Carbide End Mill

◆50° helix angle design
◆U-Flute Shape

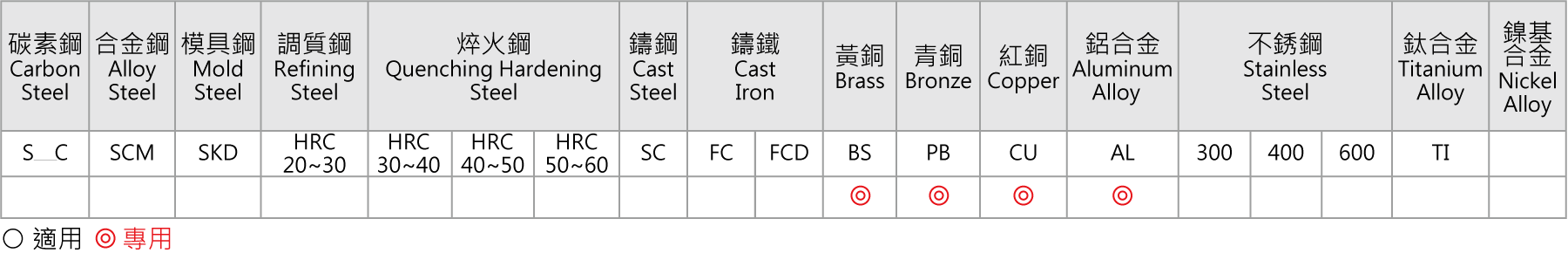

◆Suitable for cutting BS.PB.CU.AL

Catalog Download

Download cutting condition table

Tool material specifications

Features:
◆ U-Flute Shape not only strengthens the rigidity of the tool itself but also improves the smoothness of chip removal.
◆ Through special surface treatment and different material options, it provides customers with different processing needs.

Filters

Reset

Diameter

ℓ

Flute Length

2.5
3.8
4.5
5
6
6.5
7.5
9
10
12.5
12
15
16
17.5
18
20
22.5
24
25
27.5
30
32
36
40
48

Overall Length

Shank Diameter

DA5003

Unit : mm

Model NO.	dDiameter	IFlute Length	LOverall Length	DShank Diameter	State
DA5003AA03B	3	4.5	50	3	●
DA5003AB03B	3	4.5	50	4	●
DA5003AB04B	4	6	50	4	●
DA5003AC03B	3	4.5	50	6	●
DA5003AC04B	4	6	50	6	●
DA5003AC06B	6	9	50	6	●
DA5003AD08B	8	12	60	8	●
DA5003AE10B	10	15	60	10	●
DA5003AF12B	12	18	60	12	●
DA5003BA03B	3	7.5	50	3	●
DA5003BB01B	1	2.5	50	4	●
DA5003BB15B	1.5	3.8	50	4	●
DA5003BB02B	2	5	50	4	●
DA5003BB25B	2.5	6.5	50	4	●
DA5003BB03B	3	7.5	50	4	●
DA5003BB04B	4	10	50	4	●
DA5003BC03B	3	7.5	50	6	●
DA5003BC04B	4	10	50	6	●
DA5003BC05B	5	12.5	50	6	●
DA5003BC06B	6	15	50	6	●
DA5003BD07B	7	17.5	60	8	●
DA5003BD08B	8	20	60	8	●
DA5003BE09B	9	22.5	75	10	●
DA5003BE10B	10	25	75	10	●
DA5003BF11B	11	27.5	75	12	●
DA5003BF12B	12	30	75	12	●
DA5003BG13B	13	40	100	13	●
DA5003BH14B	14	40	100	14	●
DA5003BI15B	15	40	100	16	●
DA5003BI16B	16	40	100	16	●
DA5003CA03B	3	9	50	3	●
DA5003CB03B	3	9	50	4	●
DA5003CB04B	4	12	50	4	●
DA5003CC03B	3	9	50	6	●
DA5003CC04A	4	12	50	6	●
DA5003CC06B	6	18	50	6	●
DA5003CD08B	8	24	60	8	●
DA5003CE10B	10	30	75	10	●
DA5003CF12B	12	36	75	12	●
DA5003DA03B	3	12	50	3	●
DA5003DB03B	3	12	50	4	●
DA5003DB04B1	4	16	60	4	●
DA5003DC03B	3	12	50	6	●
DA5003DC04B1	4	16	60	6	●
DA5003DC06B	6	24	60	6	●
DA5003DD08B	8	32	75	8	●
DA5003DE10B	10	40	100	10	●
DA5003DF12B	12	48	100	12	●

: Production to order : In stock▲ : Customized products
