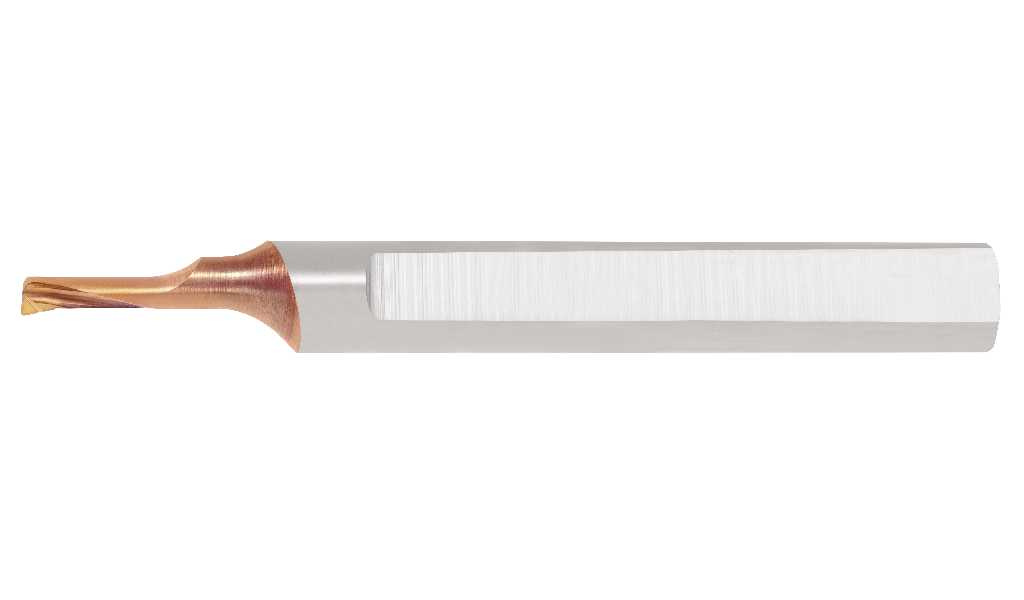

GIBC Carbide Internal Boring Bars x2D

GST-Carbide Internal Boring Bars

◆Patented flute shape/New design
◆Suitable for cutting S__C.SCM.SKD.HRC20~30.HRC30~40.BS.PB.AL.SUS.TI.Nickel Alloy

Catalog Download

Download cutting condition table

Tool material specifications

Features:
◆The excellent properties of the coating increase the wear resistance and thermal conductivity of the tool and reduce the problem of chip sticking.
◆The self-developed special blade design makes it stable in chip breaking and good in chip removal.
◆Improve processing accuracy and surface roughness.

Filters

Reset

Overall Length

28
29
30
31
32
33
34
38
39
40
43
45.5

Shank Diameter

GIBC2D

Unit : mm

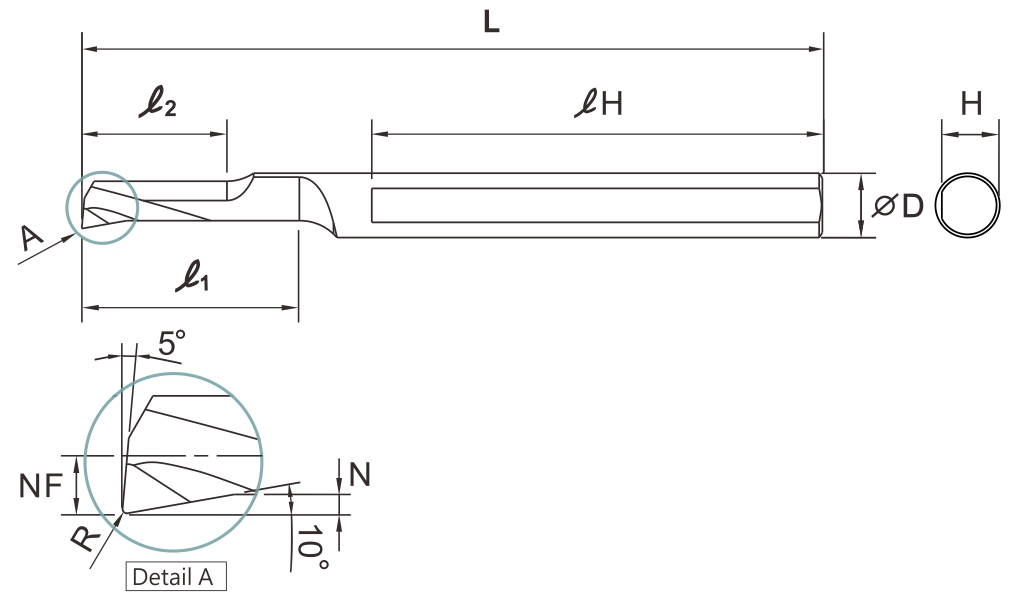

Model NO.	Minimum Bore Diameter	NFCenter Distance	RNose Radius	nNeck Depth	ℓ1Neck Length#1	ℓ2Neck Length#2	ℓHSide Fixed Length	HSide Fixed Thickness	LOverall Length	DShack Diameter	State
GIBC2D1503-005	1.5	0.7	0.05	0.2	4.5	3	18	2.6	28	3	●
GIBC2D1503-010	1.5	0.7	0.1	0.2	4.5	3	18	2.6	28	3	●
GIBC2D2003-005	2	0.95	0.05	0.3	6	4	18	2.6	29	3	●
GIBC2D2003-010	2	0.95	0.1	0.3	6	4	18	2.6	29	3	●
GIBC2D2503-005	2.5	1.2	0.05	0.37	7.5	5	18	2.6	31	3	●
GIBC2D2503-010	2.5	1.2	0.1	0.37	7.5	5	18	2.6	31	3	●
GIBC2D3003-005	3	1.45	0.05	0.45	9	-	18	2.6	32	3	●
GIBC2D3003-010	3	1.45	0.1	0.45	9	-	18	2.6	32	3	●
GIBC2D3003-020	3	1.45	0.2	0.45	9	-	18	2.6	32	3	●
GIBC2D1504-005	1.5	0.7	0.05	0.2	4.5	3	18	3.6	28	4	●
GIBC2D1504-010	1.5	0.7	0.1	0.2	4.5	3	18	3.6	28	4	●
GIBC2D2004-005	2	0.95	0.05	0.3	6	4	18	3.6	29	4	●
GIBC2D2004-010	2	0.95	0.1	0.3	6	4	18	3.6	29	4	●
GIBC2D2504-005	2.5	1.2	0.05	0.37	7.5	5	18	3.6	30	4	●
GIBC2D2504-010	2.5	1.2	0.1	0.37	7.5	5	18	3.6	30	4	●
GIBC2D3004-005	3	1.45	0.05	0.45	9	6	18	3.6	32	4	●
GIBC2D3004-010	3	1.45	0.1	0.45	9	6	18	3.6	32	4	●
GIBC2D3004-020	3	1.45	0.2	0.45	9	6	18	3.6	32	4	●
GIBC2D3504-005	3.5	1.7	0.05	0.52	10.5	7	18	3.6	33	4	●
GIBC2D3504-010	3.5	1.7	0.1	0.52	10.5	7	18	3.6	33	4	●
GIBC2D3504-020	3.5	1.7	0.2	0.52	10.5	7	18	3.6	33	4	●
GIBC2D4004-010	4	1.95	0.1	0.6	12	-	18	3.6	34	4	●
GIBC2D4004-020	4	1.95	0.2	0.6	12	-	18	3.6	34	4	●
GIBC2D3006-005	3	1.45	0.05	0.45	9	6	22	5.5	38	6	●
GIBC2D3006-010	3	1.45	0.1	0.45	9	6	22	5.5	38	6	●
GIBC2D3006-020	3	1.45	0.2	0.45	9	6	22	5.5	38	6	●
GIBC2D3506-005	3.5	1.7	0.05	0.52	10.5	7	22	5.5	39	6	●
GIBC2D3506-010	3.5	1.7	0.1	0.52	10.5	7	22	5.5	39	6	●
GIBC2D3506-020	3.5	1.7	0.2	0.52	10.5	7	22	5.5	39	6	●
GIBC2D4006-010	4	1.95	0.1	0.6	12	8	22	5.5	40	6	●
GIBC2D4006-020	4	1.95	0.2	0.6	12	8	22	5.5	40	6	●
GIBC2D5006-010	5	2.45	0.1	0.75	15	10	22	5.5	43	6	●
GIBC2D5006-020	5	2.45	0.2	0.75	15	10	22	5.5	43	6	●
GIBC2D5006-040	5	2.45	0.4	0.75	15	10	22	5.5	43	6	●
GIBC2D6006-010	6	2.95	0.1	0.9	18	-	22	5.5	45.5	6	●
GIBC2D6006-020	6	2.95	0.2	0.9	18	-	22	5.5	45.5	6	●
GIBC2D6006-040	6	2.95	0.4	0.9	18	-	22	5.5	45.5	6	●

: Production to order : In stock▲ : Customized products
