GIBE Carbide Internal Boring Bars x3D

GST-Carbide Internal Boring Bars

◆Patented flute shape/New design

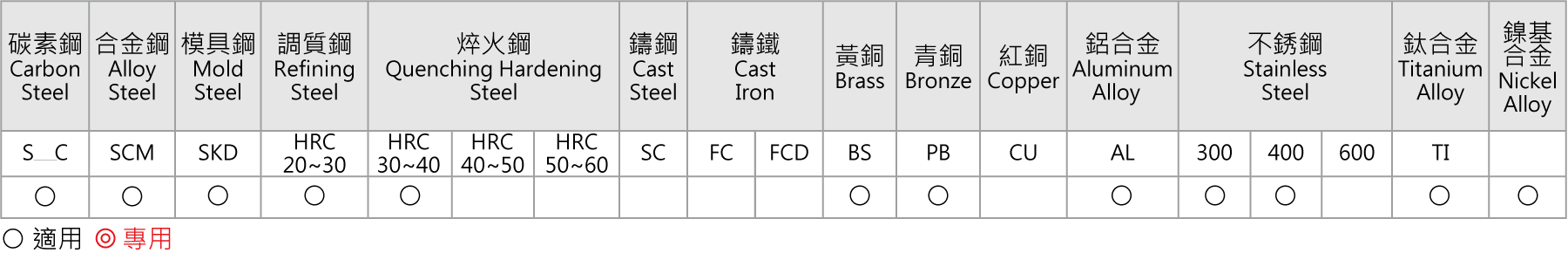

◆Suitable for cutting S__C.SCM.SKD.HRC20~30.HRC30~40.BS.PB.AL.SUS.TI.Nickel Alloy

Catalog Download

Download cutting condition table

Tool material specifications

Features:
◆The excellent properties of the coating increase the wear resistance and thermal conductivity of the tool and reduce the problem of chip sticking.
◆The self-developed special blade design makes it stable in chip breaking and good in chip removal.
◆Improve processing accuracy and surface roughness.

Filters

Reset

Overall Length

30
32
34.5
34
35
37
39
41
43
48
49.5
51.5
55.5
56.5

Shank Diameter

GIBE3D

Unit : mm

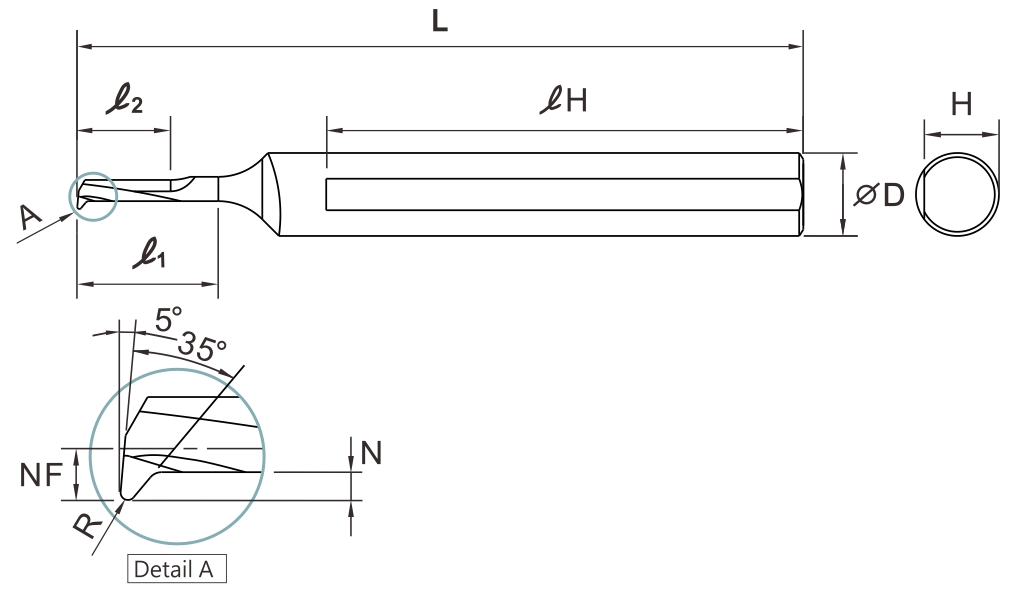

Model NO.	Minimum Bore Diameter	NFCenter Distance	RNose Radius	nNeck Depth	ℓ1Neck Length#1	ℓ2Neck Length#2	ℓHSide Fixed Length	HSide Fixed Thickness	LOverall Length	DShack Diameter	State
GIBE3D1503-005	1.5	0.7	R0.05	0.38	6.8	4.5	18	2.6	30	3	●
GIBE3D1503-010	1.5	0.7	R0.1	0.38	6.8	4.5	18	2.6	30	3	●
GIBE3D2003-005	2	0.95	R0.05	0.5	9	6	18	2.6	32	3	●
GIBE3D2003-010	2	0.95	R0.1	0.5	9	6	18	2.6	32	3	●
GIBE3D2503-005	2.5	1.2	R0.05	0.63	11.3	7.5	18	2.6	34	3	●
GIBE3D2503-010	2.5	1.2	R0.1	0.63	11.3	7.5	18	2.6	34	3	●
GIBE3D3003-005	3	1.45	R0.05	0.75	12	-	18	2.6	34.5	3	●
GIBE3D3003-010	3	1.45	R0.1	0.75	12	-	18	2.6	34.5	3	●
GIBE3D3003-020	3	1.45	R0.2	0.75	12	-	18	2.6	34.5	3	●
GIBE3D1504-005	1.5	0.7	R0.05	0.38	6.8	4.5	23	3.6	35	4	●
GIBE3D1504-010	1.5	0.7	R0.1	0.38	6.8	4.5	23	3.6	35	4	●
GIBE3D2004-005	2	0.95	R0.05	0.5	9	6	23	3.6	37	4	●
GIBE3D2004-010	2	0.95	R0.1	0.5	9	6	23	3.6	37	4	●
GIBE3D2504-005	2.5	1.2	R0.05	0.63	11.3	7.5	23	3.6	39	4	●
GIBE3D2504-010	2.5	1.2	R0.1	0.63	11.3	7.5	23	3.6	39	4	●
GIBE3D3004-005	3	1.45	R0.05	0.75	13.5	9	23	3.6	41	4	●
GIBE3D3004-010	3	1.45	R0.1	0.75	13.5	9	23	3.6	41	4	●
GIBE3D3004-020	3	1.45	R0.2	0.75	13.5	9	23	3.6	41	4	●
GIBE3D3504-005	3.5	1.7	R0.05	0.88	15.8	10.5	23	3.6	43	4	●
GIBE3D3504-010	3.5	1.7	R0.1	0.88	15.8	10.5	23	3.6	43	4	●
GIBE3D3504-020	3.5	1.7	R0.2	0.88	15.8	10.5	23	3.6	43	4	●
GIBE3D4004-010	4	1.95	R0.1	1	16	-	23	3.6	43	4	●
GIBE3D4004-020	4	1.95	R0.2	1	16	-	23	3.6	43	4	●
GIBE3D3006-005	3	1.45	R0.05	0.75	13.5	9	28	5.5	48	6	●
GIBE3D3006-010	3	1.45	R0.1	0.75	13.5	9	28	5.5	48	6	●
GIBE3D3006-020	3	1.45	R0.2	0.75	13.5	9	28	5.5	48	6	●
GIBE3D3506-005	3.5	1.7	R0.05	0.88	15.8	10.5	28	5.5	49.5	6	●
GIBE3D3506-010	3.5	1.7	R0.1	0.88	15.8	10.5	28	5.5	49.5	6	●
GIBE3D3506-020	3.5	1.7	R0.2	0.88	15.8	10.5	28	5.5	49.5	6	●
GIBE3D4006-010	4	1.95	R0.1	1	18	12	28	5.5	51.5	6	●
GIBE3D4006-020	4	1.95	R0.2	1	18	12	28	5.5	51.5	6	●
GIBE3D5006-010	5	2.45	R0.1	1.25	22.5	15	28	5.5	55.5	6	●
GIBE3D5006-020	5	2.45	R0.2	1.25	22.5	15	28	5.5	55.5	6	●
GIBE3D5006-040	5	2.45	R0.4	1.25	22.5	15	28	5.5	55.5	6	●
GIBE3D6006-010	6	2.95	R0.1	1.5	24	-	28	5.5	56.5	6	●
GIBE3D6006-020	6	2.95	R0.2	1.5	24	-	28	5.5	56.5	6	●
GIBE3D6006-040	6	2.95	R0.4	1.5	24	-	28	5.5	56.5	6	●

: Production to order : In stock▲ : Customized products
